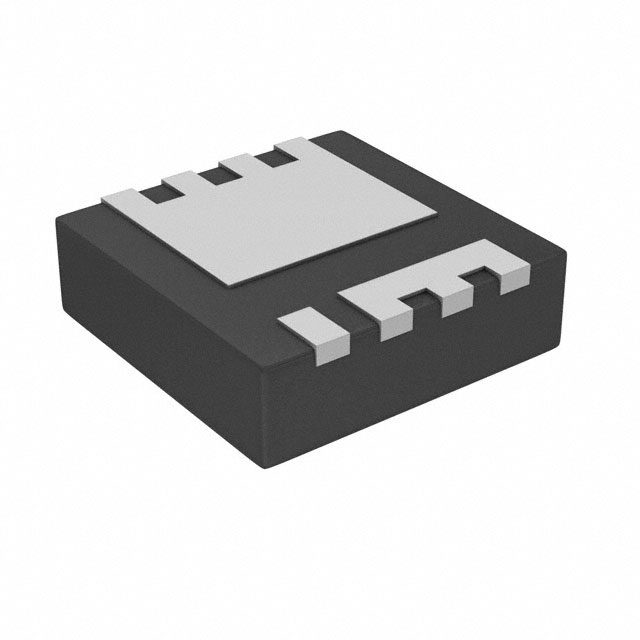

BSZ110N06NS3GATMA1
MOSFET N-CH 60V 20A 8TSDSONManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 20A (Tc) 2.1W (Ta), 50W (Tc) Surface Mount PG-TSDSON-8
Additional Information
Series: Optimos™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Rds On (Max) @ Id, Vgs | 11mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.1W (Ta), 50W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 23µA |
| Supplier Device Package | PG-TSDSON-8 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 33 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2700 pF @ 30 V |
Request a Quote
