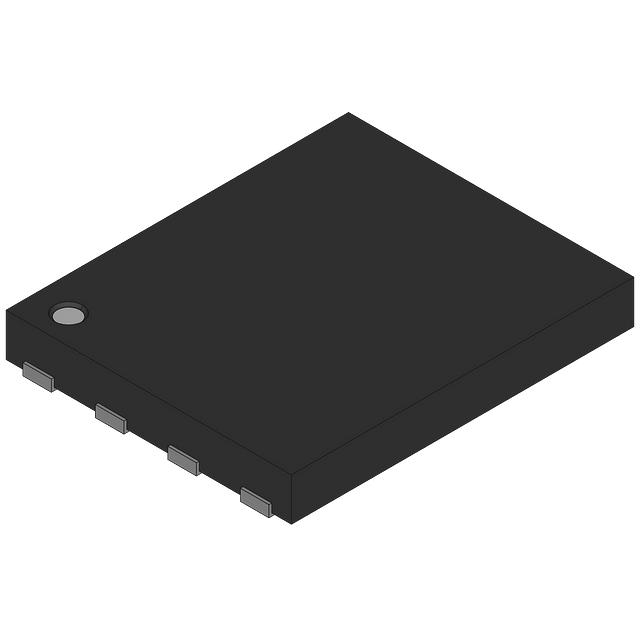

BSF024N03LT3G
N-CHANNEL POWER MOSFETManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 15A (Ta), 106A (Tc) 2.2W (Ta), 42W (Tc) Surface Mount MG-WDSON-2
Additional Information
Series: OptiMOS™3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DirectFET™ Isometric MX |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta), 106A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.4mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.2W (Ta), 42W (Tc) |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | MG-WDSON-2 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 71 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5500 pF @ 15 V |
Request a Quote
