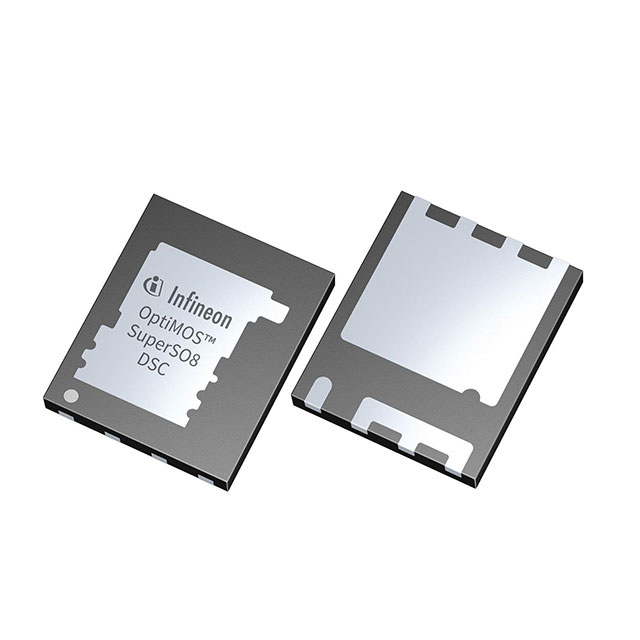

BSC033N08NS5SCATMA1
TRENCH 40<-<100VManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 80 V 144A (Tc) 136W (Tc) Surface Mount PG-WSON-8-2
Additional Information
Series: OptiMOS™ 5RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 144A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.3mOhm @ 50A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 136W (Tc) |
| Vgs(th) (Max) @ Id | 3.8V @ 76µA |
| Supplier Device Package | PG-WSON-8-2 |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 66 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4600 pF @ 40 V |
Request a Quote
