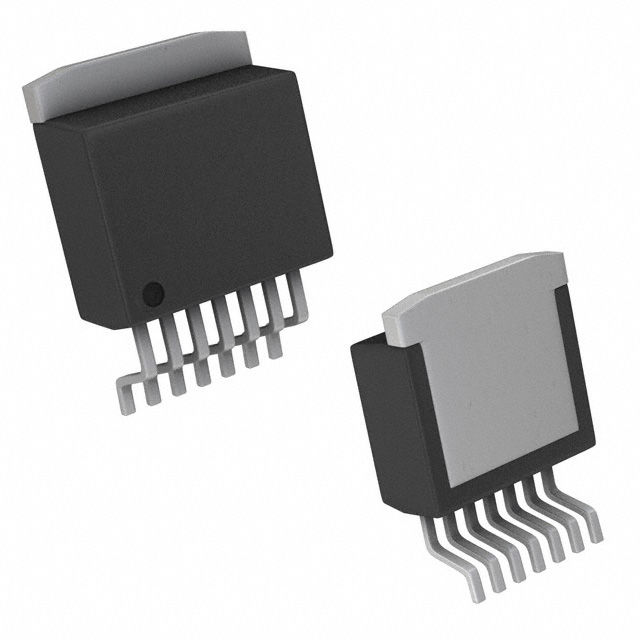

AUIRLS3034-7P
MOSFET N-CH 40V 240A D2PAKManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Infineon Technologies AUIRLS3034-7P, an N-Channel HEXFET® power MOSFET, offers a 40V drain-source voltage and a continuous drain current of 240A at 25°C. This component features a low on-resistance of 1.4mOhm maximum at 200A and 10V, with a gate charge of 180 nC maximum at 4.5V. Designed for high-power applications, it supports a maximum power dissipation of 380W. The device is provided in a TO-263-8, D2PAK (7-Lead) surface mount package. Operating temperature range is -55°C to 175°C. This MOSFET is suitable for automotive and industrial power switching applications.
Additional Information
Series: HEXFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 240A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.4mOhm @ 200A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 380W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | D2PAK (7-Lead) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 180 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 10990 pF @ 40 V |
