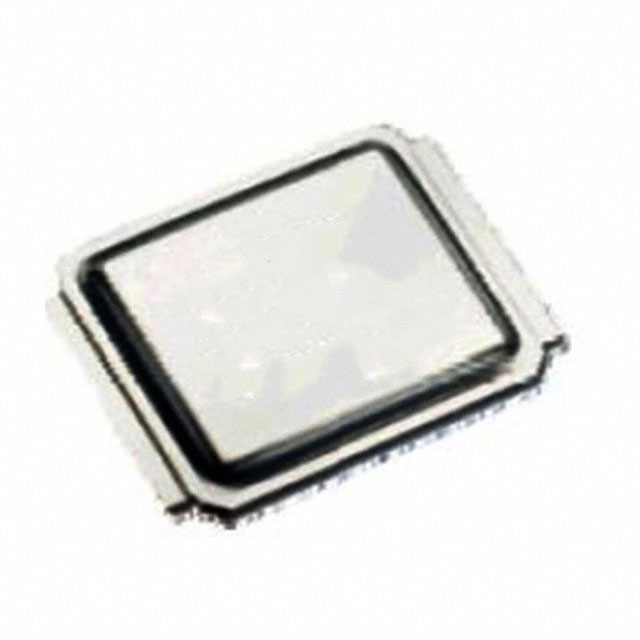

AUIRL7736M2TR
MOSFET N-CH 40V 179A DIRECTFETManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Infineon Technologies AUIRL7736M2TR is an N-Channel Power MOSFET from the HEXFET® series, featuring a 40V drain-source voltage and a continuous drain current capability of 179A at 25°C (Tc). This DirectFET™ Isometric M4 packaged component offers a low on-resistance of 3mOhm maximum at 67A and 10V Vgs. Key electrical characteristics include a gate charge of 78 nC maximum at 4.5V and an input capacitance of 5055 pF maximum at 25V. The device operates over a temperature range of -55°C to 175°C (TJ) and supports gate drive voltages from 4.5V to 10V, with a maximum Vgs of ±16V. Power dissipation is rated at 63W (Tc) and 2.5W (Ta). This MOSFET is suitable for high-power applications in the automotive and industrial sectors.
Additional Information
Series: HEXFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DirectFET™ Isometric M4 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 179A (Tc) |
| Rds On (Max) @ Id, Vgs | 3mOhm @ 67A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 63W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 150µA |
| Supplier Device Package | DirectFET™ Isometric M4 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±16V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 78 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5055 pF @ 25 V |
