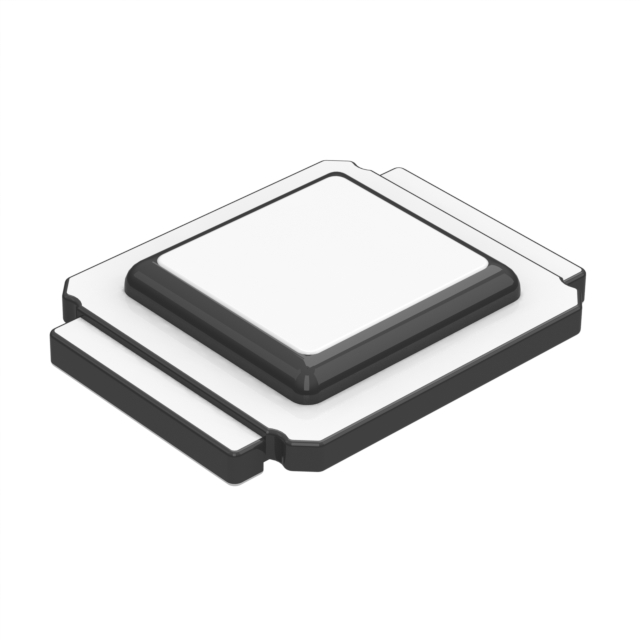

AUIRL7732S2TR
MOSFET N-CH 40V 14A DIRECTFET SCManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 14A (Ta) 2.2W (Ta), 41W (Tc) Surface Mount DIRECTFET™ SC
Additional Information
Series: HEXFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DirectFET™ Isometric SC |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta) |
| Rds On (Max) @ Id, Vgs | 6.6mOhm @ 35A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.2W (Ta), 41W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 50µA |
| Supplier Device Package | DIRECTFET™ SC |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±16V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 33 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2020 pF @ 25 V |
Request a Quote
