AUIRFSA8409-7TRL
MOSFET N-CH 40V 523A D2PAKManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Infineon Technologies presents the AUIRFSA8409-7TRL, an N-Channel HEXFET® power MOSFET designed for demanding automotive applications. This device features a 40 V drain-source voltage and a continuous drain current capability of 523 A at 25°C (Tc), with a maximum power dissipation of 375 W (Tc). The low on-resistance of 0.69 mOhm at 100 A and 10 V gate drive makes it highly efficient for high-current switching. Key parameters include a gate charge (Qg) of 460 nC at 10 V and input capacitance (Ciss) of 13975 pF at 25 V. The MOSFET is qualified to AEC-Q101 standards and housed in a PG-TO263-7 (D2PAK) surface-mount package, supplied on tape and reel. Its robust design is suitable for power management and motor control systems within the automotive sector.
Additional Information
Series: HEXFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

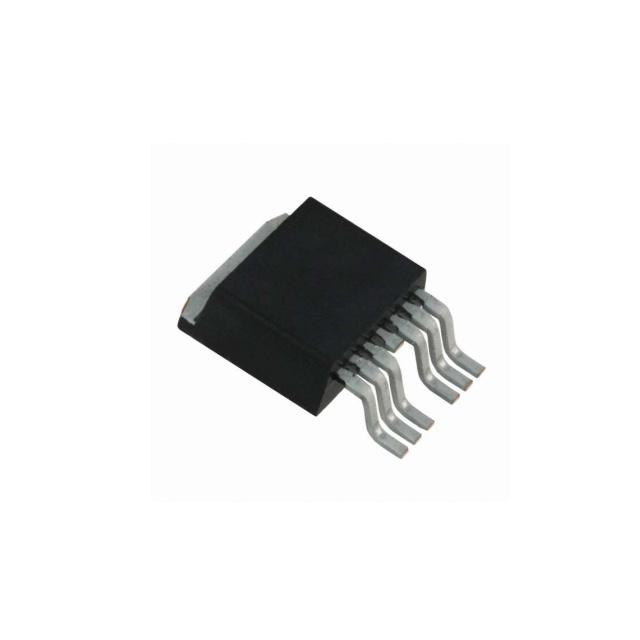

| Package / Case | TO-263-7, D2PAK (6 Leads + Tab) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 523A (Tc) |
| Rds On (Max) @ Id, Vgs | 0.69mOhm @ 100A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 375W (Tc) |
| Vgs(th) (Max) @ Id | 3.9V @ 250µA |
| Supplier Device Package | PG-TO263-7 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 460 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 13975 pF @ 25 V |
| Qualification | AEC-Q101 |
