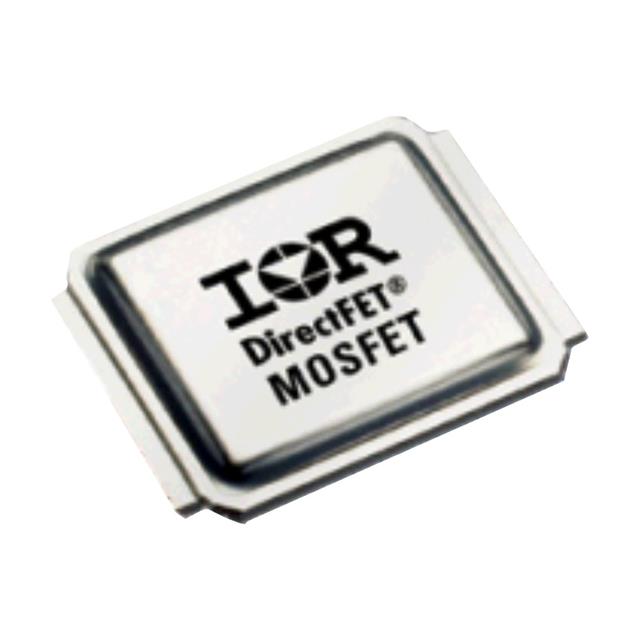

AUIRF7647S2TR
MOSFET N-CH 100V 5.9A DIRECTFETManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The Infineon Technologies AUIRFU7647S2TR is a HEXFET® N-Channel power MOSFET designed for high-density power applications. This device features a 100V drain-source breakdown voltage and offers a continuous drain current of 5.9A at 25°C ambient or 24A at 25°C case temperature. With a maximum Rds(on) of 31mOhm at 14A and 10V Vgs, it ensures efficient power transfer. The AUIRFU7647S2TR is packaged in a DirectFET™ Isometric SC surface-mount package, facilitating thermal management with a power dissipation of 2.5W (Ta) and 41W (Tc). Its typical applications span automotive, industrial, and high-performance computing sectors where robust and efficient switching characteristics are paramount. Key parameters include a gate charge (Qg) of 21 nC at 10V, input capacitance (Ciss) of 910 pF at 25V, and a gate-source voltage (Vgs) range of ±20V. The operating junction temperature range is -55°C to 175°C.
Additional Information
Series: HEXFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DirectFET™ Isometric SC |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5.9A (Ta), 24A (Tc) |
| Rds On (Max) @ Id, Vgs | 31mOhm @ 14A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 41W (Tc) |
| Vgs(th) (Max) @ Id | 5V @ 50µA |
| Supplier Device Package | DIRECTFET™ SC |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 21 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 910 pF @ 25 V |
