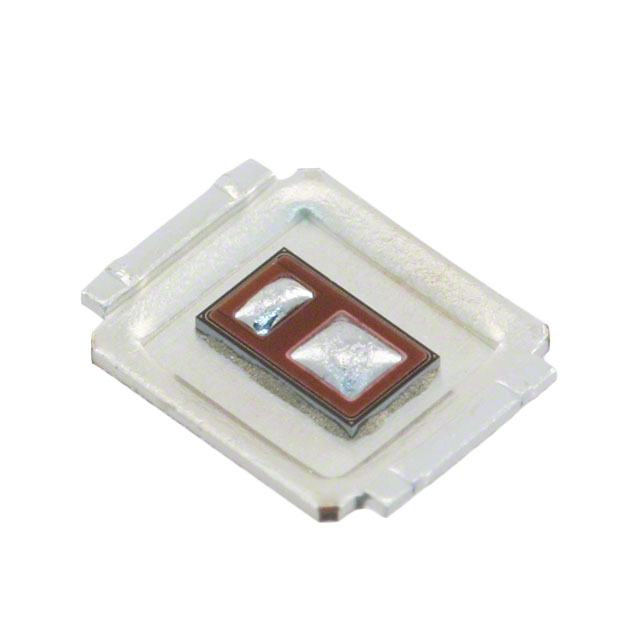

AUIRF7640S2TR
MOSFET N-CH 60V 5.8A DIRECTFETManufacturer: Infineon Technologies
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Infineon Technologies HEXFET® AUIRFU7640S2TR is an N-Channel MOSFET designed for high-performance applications. This component features a 60V drain-to-source voltage (Vdss) and a continuous drain current (Id) of 5.8A at 25°C ambient, scaling to 21A at 25°C case temperature. The device offers a low on-resistance (Rds On) of 36mOhm maximum at 13A and 10V gate-source voltage. With a maximum power dissipation of 2.4W (Ta) and 30W (Tc), and an operating temperature range of -55°C to 175°C, it is suitable for demanding thermal environments. Key electrical parameters include a gate charge (Qg) of 11 nC maximum at 10V and input capacitance (Ciss) of 450 pF maximum at 25V. The DIRECTFET™ Isometric SB package facilitates surface mounting and is supplied on tape and reel. This MOSFET is utilized in automotive and industrial power management systems.
Additional Information
Series: HEXFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DirectFET™ Isometric SB |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5.8A (Ta), 21A (Tc) |
| Rds On (Max) @ Id, Vgs | 36mOhm @ 13A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.4W (Ta), 30W (Tc) |
| Vgs(th) (Max) @ Id | 5V @ 25µA |
| Supplier Device Package | DIRECTFET SB |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 11 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 450 pF @ 25 V |
