ND350N12KHPSA1
DIODE GP 1.2KV 350A PB50ND-1Manufacturer: Infineon Technologies
Categories: Single Diodes
Quality Control: Learn More

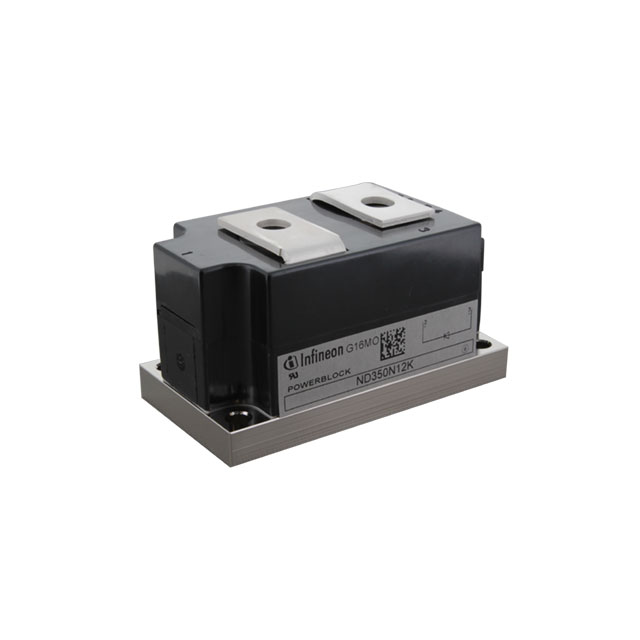

Infineon Technologies ND350N12KHPSA1 is a high-power general-purpose diode designed for demanding applications. This standard recovery diode features a maximum DC reverse voltage of 1200 V and an average rectified current handling capability of 350 A. It is packaged in a BG-PB50ND-1 module with chassis mount for efficient thermal management. The operating junction temperature range is -40°C to 135°C, and it exhibits a reverse leakage current of 30 mA at 1200 V. This component is suitable for use in industrial power supplies, motor control, and traction applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 350A |
| Supplier Device Package | BG-PB50ND-1 |
| Operating Temperature - Junction | -40°C ~ 135°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Reverse Leakage @ Vr | 30 mA @ 1200 V |
