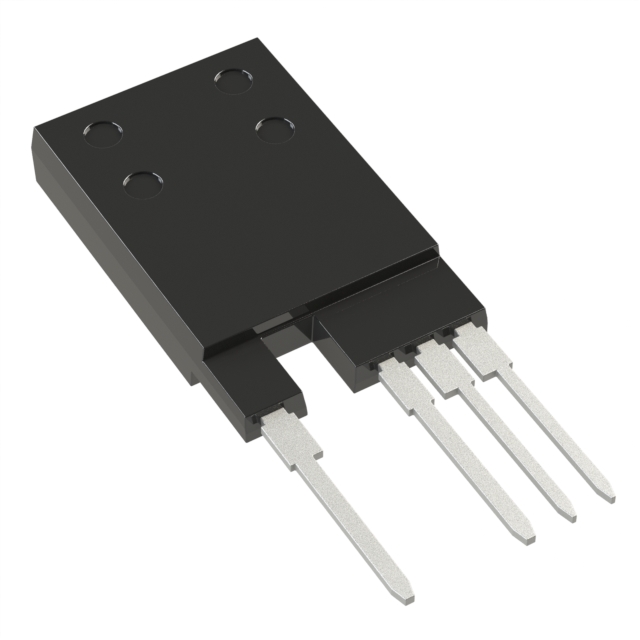

IDYH80G200C5XKSA1
SIC DISCRETEManufacturer: Infineon Technologies
Categories: Single Diodes
Quality Control: Learn More
Diode 2000 V 157A Through Hole PG-TO247-U04
Additional Information
Series: CoolSiC™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-4 Variant |
| Mounting Type | Through Hole |
| Speed | - |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 9100pF @ 1V, 100kHz |
| Current - Average Rectified (Io) | 157A |
| Supplier Device Package | PG-TO247-U04 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 2000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.75 V @ 80 A |
| Current - Reverse Leakage @ Vr | 1.2 A @ 2000 V |
| Qualification | - |
