IDWD60E120D7XKSA1
DIODE GEN PURP 1200V 94A TO247-2Manufacturer: Infineon Technologies
Categories: Single Diodes
Quality Control: Learn More

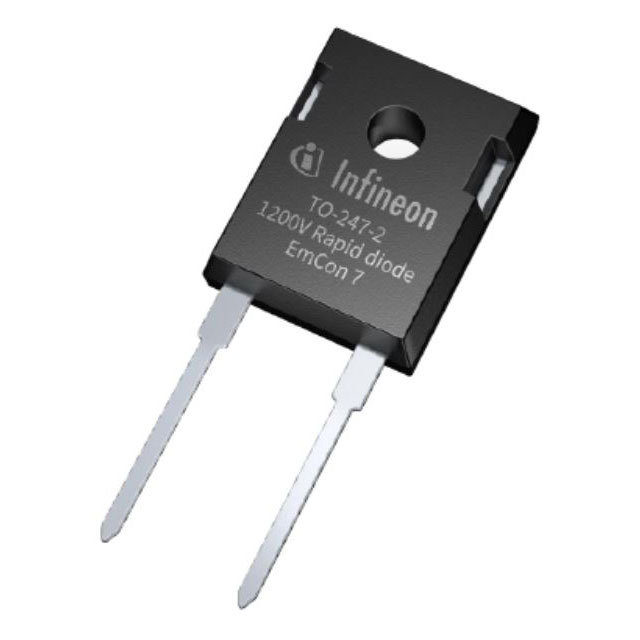

Diode 1200 V 94A Through Hole PG-TO247-2-2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 5A (Io) |
| Reverse Recovery Time (trr) | 175 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 94A |
| Supplier Device Package | PG-TO247-2-2 |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 3 V @ 60 A |
| Current - Reverse Leakage @ Vr | 20 µA @ 1200 V |
| Qualification | - |
