IDV15E65D2XKSA1
DIODE GEN PURP 650V 15A TO220-2Manufacturer: Infineon Technologies
Categories: Single Diodes
Quality Control: Learn More

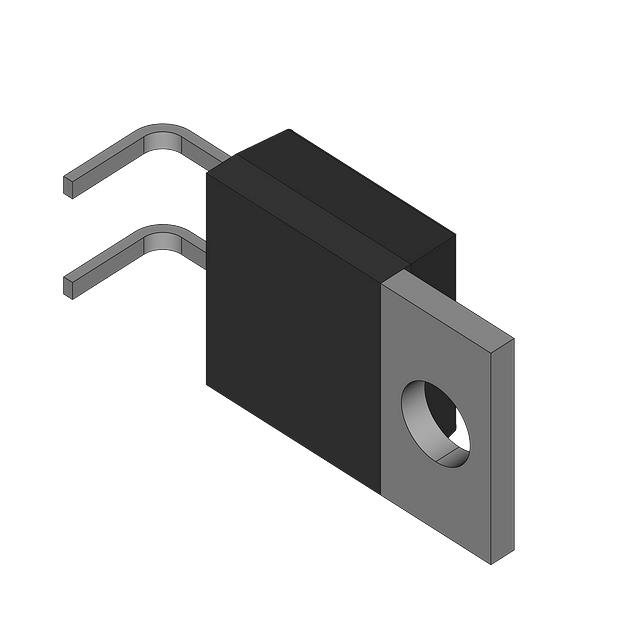

Diode 650 V 15A Through Hole TO-220-2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 47 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 15A |
| Supplier Device Package | TO-220-2 |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 2.2 V @ 15 A |
| Current - Reverse Leakage @ Vr | 40 µA @ 650 V |
Request a Quote
