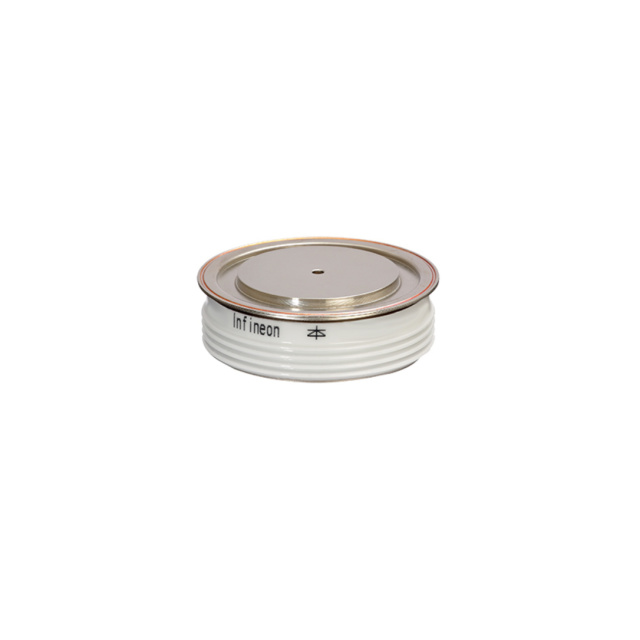

D931SH65TXPSA1
DIODE GEN PURP 6.5KV 1220AManufacturer: Infineon Technologies
Categories: Single Diodes
Quality Control: Learn More
Infineon Technologies D931SH65TXPSA1 is a high-performance general-purpose diode designed for demanding applications. This chassis mount device features a robust 6500 V reverse voltage rating and a substantial 1220 A average rectified current capability. With a forward voltage drop of 5.6 V at 2500 A, it ensures efficient power conversion. The diode exhibits a standard recovery speed exceeding 500 ns and a reverse leakage current of 100 mA at its maximum reverse voltage. Operating within a junction temperature range of 0°C to 140°C, the D931SH65TXPSA1 is suitable for use in industrial power supplies, motor drives, and high-voltage DC applications. The DO-200AD package is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | DO-200AD |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1220A |
| Supplier Device Package | - |
| Operating Temperature - Junction | 0°C ~ 140°C |
| Voltage - DC Reverse (Vr) (Max) | 6500 V |
| Voltage - Forward (Vf) (Max) @ If | 5.6 V @ 2500 A |
| Current - Reverse Leakage @ Vr | 100 mA @ 6500 V |
