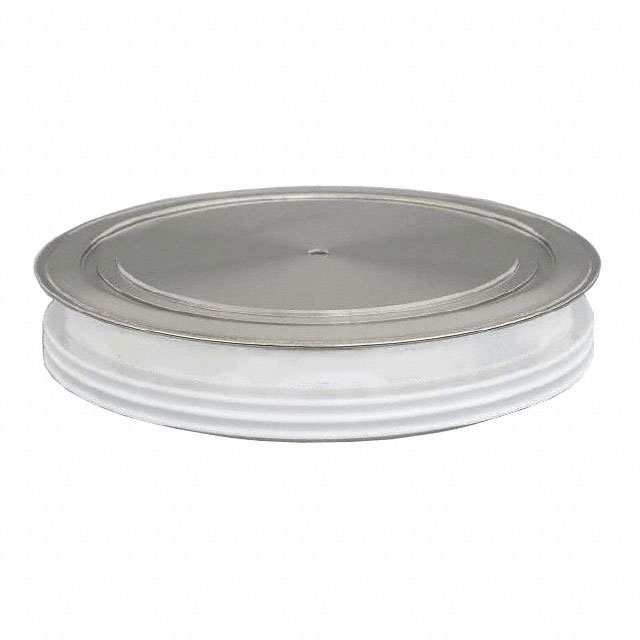

D4600U45X172XPSA1
DIODE GP 4.5KV 4450A D17226K-1Manufacturer: Infineon Technologies
Categories: Single Diodes
Quality Control: Learn More
Infineon Technologies D4600U45X172XPSA1 is a high-power general-purpose diode designed for demanding applications. This chassis mount component, housed in a DO-200AE package (BG-D17226K-1), offers a maximum DC reverse voltage of 4500 V and an average rectified forward current capability of 4450 A. The diode exhibits a maximum forward voltage drop of 2 V at 2500 A and a reverse leakage current of 25 mA at its rated reverse voltage. With a standard recovery time exceeding 500 ns at a forward current of 200 mA, this device is suitable for power conversion and control systems. It operates at a maximum junction temperature of 140°C and is supplied in tray packaging. Industries utilizing this component include industrial power supplies, electric vehicle charging, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | DO-200AE |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Current - Average Rectified (Io) | 4450A |
| Supplier Device Package | BG-D17226K-1 |
| Operating Temperature - Junction | 140°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 4500 V |
| Voltage - Forward (Vf) (Max) @ If | 2 V @ 2500 A |
| Current - Reverse Leakage @ Vr | 25 mA @ 4500 V |
