D1600U45X122XPSA1

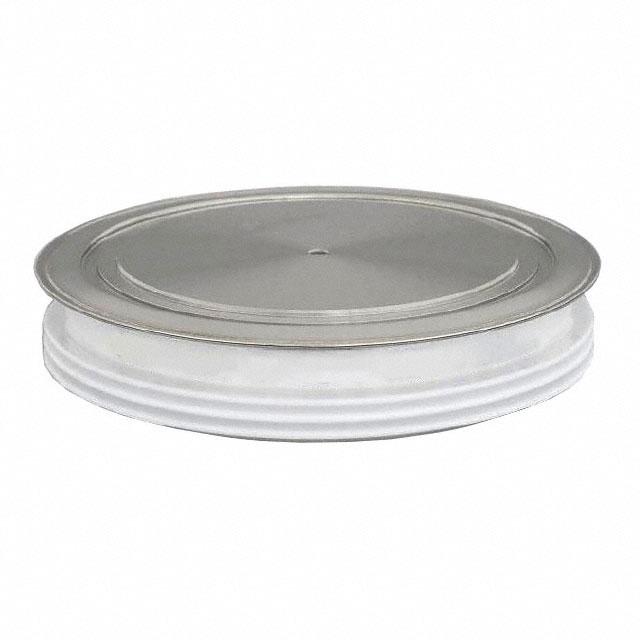

DIODE GP 4.5KV 1560A D12026K-1Manufacturer: Infineon Technologies
Categories: Single Diodes
Quality Control: Learn More
Infineon Technologies D1600U45X122XPSA1 is a high-performance standard recovery diode designed for demanding applications. This component features a maximum DC reverse voltage of 4500 V and a robust average rectified current capability of 1560 A. The forward voltage drop is specified at a maximum of 4.3 V at 2500 A. Reverse leakage current is rated at 150 mA at 4500 V.
The D1600U45X122XPSA1 utilizes a standard recovery speed, exceeding 500 ns and 200 mA (Io). Its operating junction temperature can reach up to 140°C (Max). Packaged in a BG-D12026K-1 (DO-200AE) configuration, it is designed for chassis mounting. This diode is commonly employed in industrial power conversion, motor drives, and power grid applications where high voltage and current handling are critical. It is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | DO-200AE |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1560A |
| Supplier Device Package | BG-D12026K-1 |
| Operating Temperature - Junction | 140°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 4500 V |
| Voltage - Forward (Vf) (Max) @ If | 4.3 V @ 2500 A |
| Current - Reverse Leakage @ Vr | 150 mA @ 4500 V |
