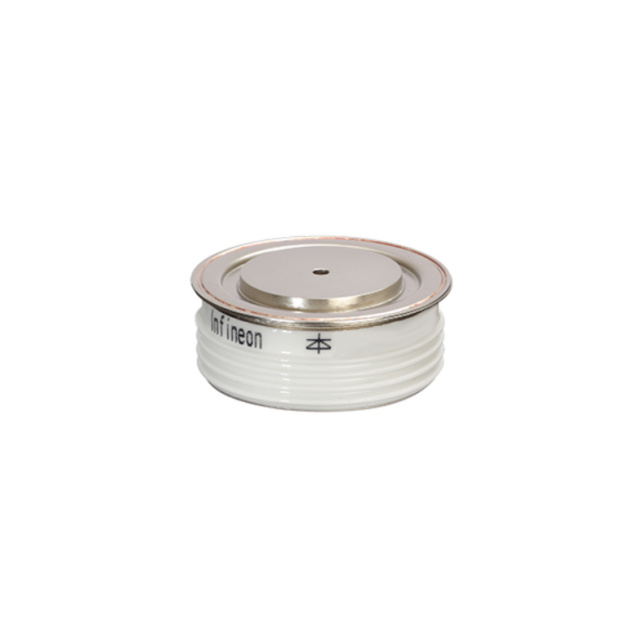

D1050N18TXPSA1
DIODE GEN PURP 1.8KV 1050AManufacturer: Infineon Technologies
Categories: Single Diodes
Quality Control: Learn More
Infineon Technologies D1050N18TXPSA1 is a high-power general-purpose diode designed for demanding applications. This device features a robust 1800 V reverse voltage rating and an impressive 1050 A average rectified current capability, making it suitable for power conversion and control systems. The diode exhibits a forward voltage drop of 1 V at 1000 A, with a reverse leakage current of 60 mA at its maximum reverse voltage. Engineered with a clamp-on mounting type and housed in a DO-200AB, B-PUK package, this component offers efficient thermal management. Its standard recovery speed, exceeding 500 ns with over 200 mA Io, ensures reliability in various industrial power applications, including motor drives, welding equipment, and high-voltage DC power supplies. The D1050N18TXPSA1 is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | DO-200AB, B-PUK |
| Mounting Type | Clamp On |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1050A |
| Supplier Device Package | - |
| Operating Temperature - Junction | -40°C ~ 180°C |
| Voltage - DC Reverse (Vr) (Max) | 1800 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1000 A |
| Current - Reverse Leakage @ Vr | 60 mA @ 1800 V |
