D1031SH45TXPSA1
DIODE GEN PURP 4.5KV 1450AManufacturer: Infineon Technologies
Categories: Single Diodes
Quality Control: Learn More

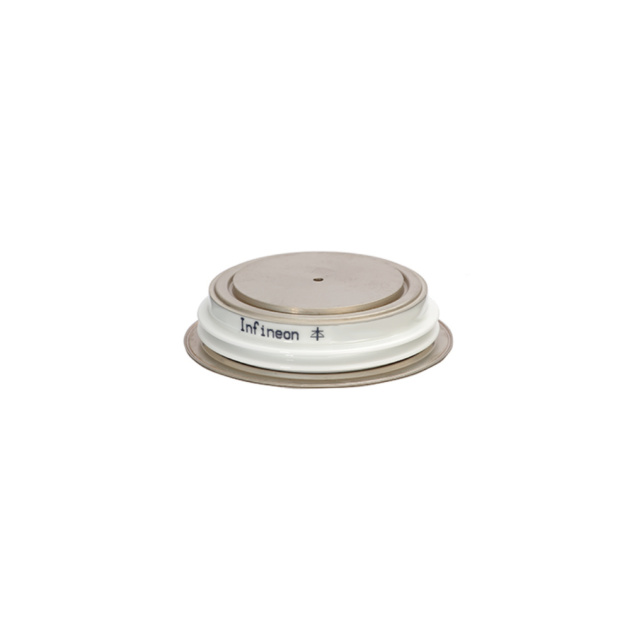

Infineon Technologies D1031SH45TXPSA1 is a high-power general-purpose diode featuring a repetitive peak reverse voltage of 4500 V and an average rectified forward current of 1450 A. This diode exhibits a maximum forward voltage drop of 4.2 V at 2500 A and a reverse leakage current of 100 mA at its maximum reverse voltage rating. Designed for standard recovery applications with a speed greater than 500 ns, it is housed in a DO-200AD package for chassis mounting, ensuring robust thermal management. The operational junction temperature range is from 0°C to 140°C. This component is frequently utilized in industrial power conversion, motor control, and high-voltage power supply applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | DO-200AD |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1450A |
| Supplier Device Package | - |
| Operating Temperature - Junction | 0°C ~ 140°C |
| Voltage - DC Reverse (Vr) (Max) | 4500 V |
| Voltage - Forward (Vf) (Max) @ If | 4.2 V @ 2500 A |
| Current - Reverse Leakage @ Vr | 100 mA @ 4500 V |
