BCP 51-16 H6778
TRANS PNP 45V 1A SOT143R-3DManufacturer: Infineon Technologies
Categories: Single Bipolar Transistors
Quality Control: Learn More
Infineon Technologies BCP-51-16-H6778 is a PNP bipolar junction transistor designed for surface mount applications. This component features a collector-emitter breakdown voltage of 45V and a continuous collector current capability of 1A. The minimum DC current gain (hFE) is specified as 100 at 150mA and 2V. With a transition frequency of 125MHz, it is suitable for various signal amplification and switching tasks. The maximum power dissipation is 2W, and it operates within an ambient temperature range up to 150°C. The transistor is housed in a PG-SOT-143R-3D package and supplied on tape and reel. Typical applications include use in consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-143R |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 2V |
| Frequency - Transition | 125MHz |
| Supplier Device Package | PG-SOT-143R-3D |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
| Power - Max | 2 W |
Request a Quote
Clients Also Buy
BC849CWH6327XTSA1
TRANS NPN 30V 0.1A SOT323

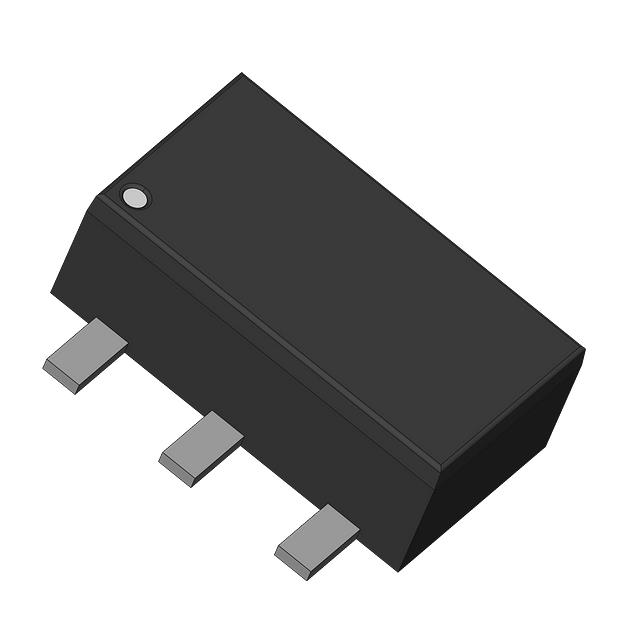

BCX52-16E6327
