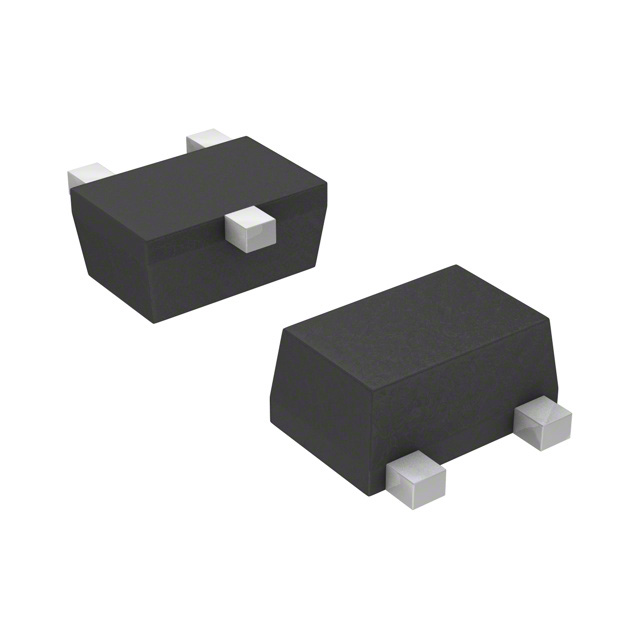

BC 847BF E6327
TRANS NPN 45V 0.1A TSFP-3Manufacturer: Infineon Technologies
Categories: Single Bipolar Transistors
Quality Control: Learn More
Infineon Technologies BC-847BF-E6327 is an NPN bipolar junction transistor designed for surface mount applications. This component features a collector-emitter breakdown voltage of 45V and a maximum collector current of 100mA. The transition frequency is rated at 250MHz, with a maximum power dissipation of 250mW. The minimum DC current gain (hFE) is 200 at 2mA collector current and 5V collector-emitter voltage. The transistor exhibits a Vce(sat) of 600mV at 5mA base current and 100mA collector current. Operating temperature range extends to 150°C (TJ). The device is supplied in a PG-TSFP-3-1 package, which corresponds to a SOT-723 footprint, and is available on tape and reel. This component is commonly utilized in general-purpose amplification and switching circuits across various electronic equipment and industrial automation systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-723 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 15nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA, 5V |
| Frequency - Transition | 250MHz |
| Supplier Device Package | PG-TSFP-3-1 |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
| Power - Max | 250 mW |
