TTB6C95N16LOF
PHASE CONTROL THYRISTOR MODULEManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 1.6 kV 75 A Bridge, 3-Phase - All SCRs Chassis Mount Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | 125°C (TJ) |
| Structure | Bridge, 3-Phase - All SCRs |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 720A @ 50Hz |
| Number of SCRs, Diodes | 6 SCRs |
| Current - On State (It (AV)) (Max) | 130 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 75 A |
| Voltage - Off State | 1.6 kV |
Request a Quote
Clients Also Buy
TD170N16KOFHPSA1
SCR MODULE 1800V 350A MODULE

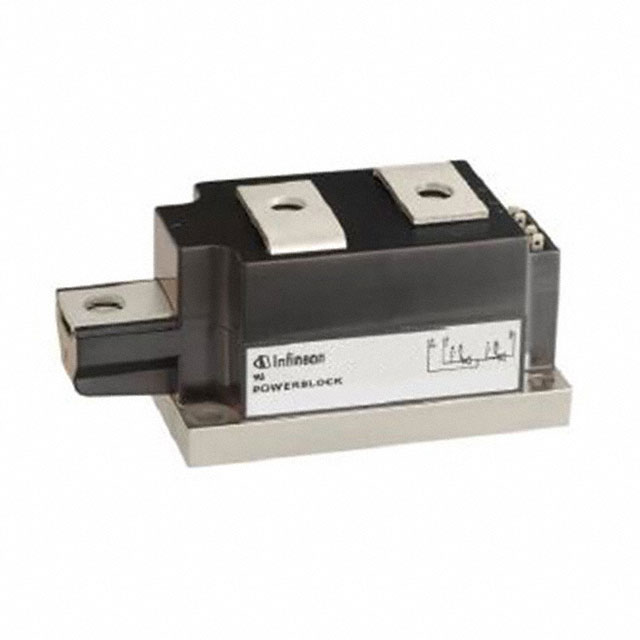

TD250N16KOFHPSA1
