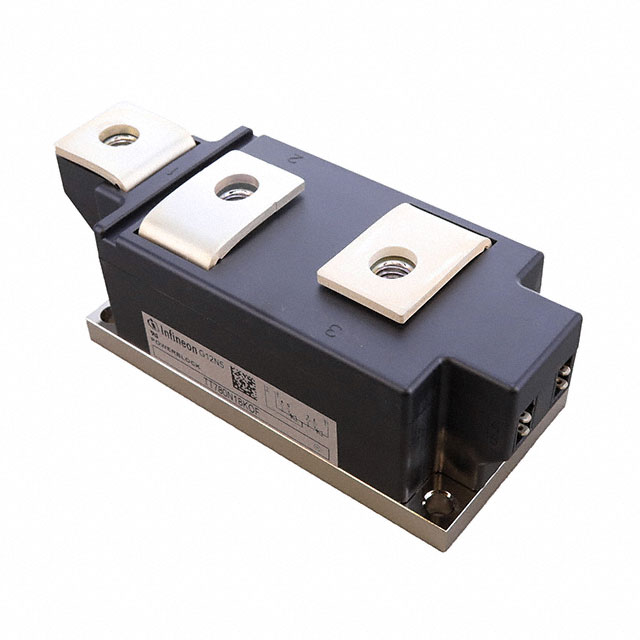

TT780N18KOFHPSA1
THYR / DIODE MODULE DKManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
Infineon Technologies TT780N18KOFHPSA1 is a Thyristor/Diode Module featuring two SCRs in a series configuration. This chassis mount module is engineered for high-power applications, offering an on-state current (RMS) of 1050 A and a non-repetitive surge current capability of 23500 A at 50/60 Hz. The device boasts a high off-state voltage rating of 1.8 kV. Gate trigger characteristics include a maximum gate trigger voltage (Vgt) of 2 V and a maximum gate trigger current (Igt) of 250 mA, with a hold current (Ih) of 300 mA. Operating at a junction temperature up to 135°C, this module is suitable for demanding industrial applications such as power control, motor drives, and high-voltage power supplies. The component is supplied in Tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | 135°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 23500A |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 775 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 1050 A |
| Voltage - Off State | 1.8 kV |
