TT60N16SOFB01HPSA1
SCR MODULE 1600V 90A MODULEManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More

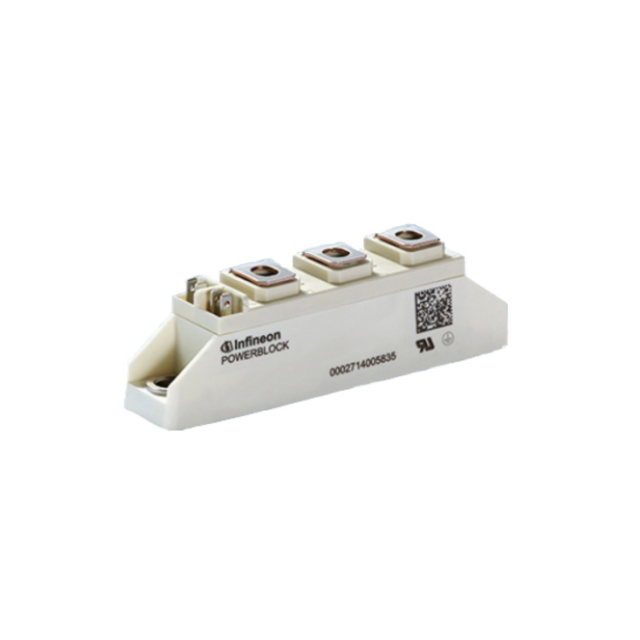

Infineon Technologies TT60N16SOFB01HPSA1 is a high-performance SCR module designed for demanding power control applications. This module features a series connection of two SCRs and diodes, offering a robust solution for high-voltage switching. With a repetitive peak off-state voltage of 1.6 kV and a continuous on-state current rating of 90 A RMS (55 A average), it is well-suited for industrial motor control, power supplies, and welding equipment. The module boasts a non-repetitive surge current capability of 1500 A at 50 Hz for enhanced reliability under transient conditions. It requires a gate trigger current of 100 mA (max) at 2.5 V (max) for activation. Engineered for chassis mounting, this module operates efficiently across a wide temperature range from -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C |
| Structure | Series Connection - SCR/Diode |
| Current - Hold (Ih) (Max) | 250 mA |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1500A @ 50Hz |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 55 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 90 A |
| Voltage - Off State | 1.6 kV |
