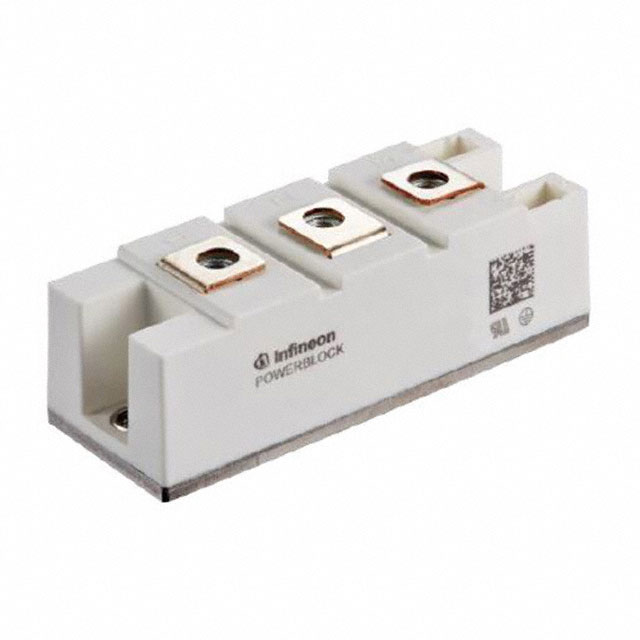

TT250N12KOFKHPSA1
SCR MODULE 1800V 410A MODULEManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
Infineon Technologies TT250N12KOFKHPSA1 is a high-power SCR module featuring a 1.8 kV blocking voltage and 410 A RMS on-state current. This module is configured in a series connection of two SCRs and diodes, designed for efficient power control in demanding applications. It offers a substantial 250 A average on-state current and a non-repetitive surge current capability of 8000 A at 50 Hz, ensuring robustness under transient conditions. The module requires a gate trigger current of 200 mA and a gate trigger voltage of 2 V for activation. With a hold current of 300 mA and an operating temperature range of -40°C to 125°C, it is suitable for industrial power systems, motor drives, and renewable energy converters. The chassis mount package facilitates robust thermal management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C |
| Structure | Series Connection - SCR/Diode |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8000A @ 50Hz |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 250 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 410 A |
| Voltage - Off State | 1.8 kV |
