TT180N16KOFHPSA1
SCR MODULE 1.6KV 285A MODULEManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More

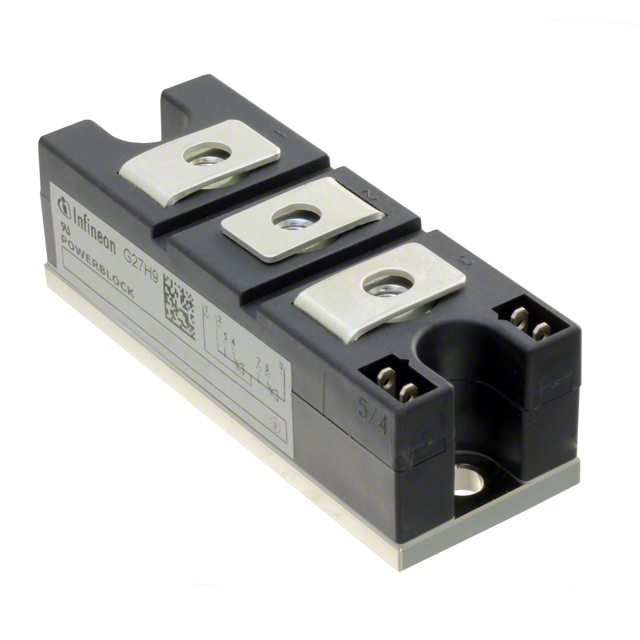

Infineon Technologies TT180N16KOFHPSA1 is a high-power SCR module featuring a series connection of two SCRs. This chassis-mount component is rated for a repetitive peak off-state voltage (VDRM) of 1.6 kV and a continuous on-state current (IT(AV)) of 180 A, with an RMS on-state current (IT(RMS)) of 285 A. The module requires a maximum gate trigger current (IGT) of 150 mA and a gate trigger voltage (VGT) of 2 V. Designed for demanding applications, it operates at junction temperatures up to 130°C. This robust SCR module is utilized in industrial applications such as power conversion, motor control, and power supplies where high voltage and current handling capabilities are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | 130°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 180 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 285 A |
| Voltage - Off State | 1.6 kV |
