TT175N16SOFHPSA1
SCR MODULE 1600V 275A MODULEManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More

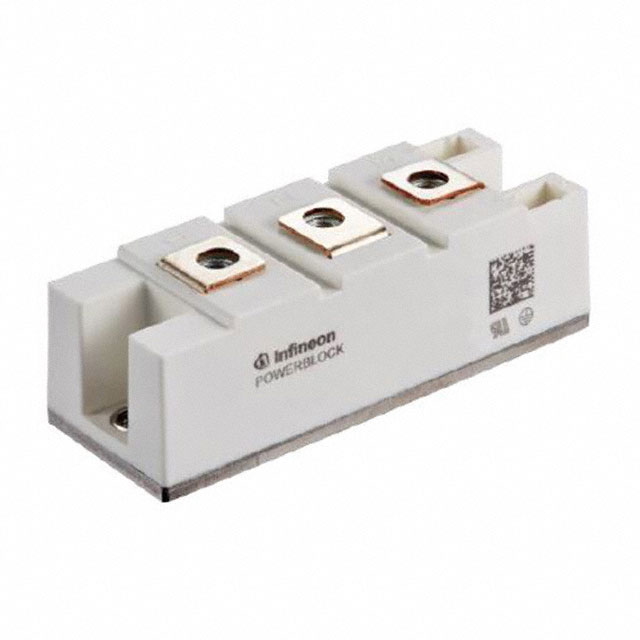

Infineon Technologies TT175N16SOFHPSA1 is a high-power SCR module featuring a 1.6 kV blocking voltage and 275 A RMS on-state current. This module utilizes a series connection of two SCRs, providing robust power control capabilities. Engineered for demanding applications, it boasts a 5400 A surge current rating at 50 Hz and an average on-state current of 175 A. The TT175N16SOFHPSA1 is designed for chassis mounting and operates within a temperature range of -40°C to 125°C. Key trigger parameters include a maximum gate trigger current (Igt) of 150 mA and a maximum gate trigger voltage (Vgt) of 2 V, with a hold current (Ih) of 400 mA. This component is suitable for use in power conversion, motor control, and industrial heating applications. The module is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C |
| Structure | Series Connection - SCR/Diode |
| Current - Hold (Ih) (Max) | 400 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 5400A @ 50Hz |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 175 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 275 A |
| Voltage - Off State | 1.6 kV |
