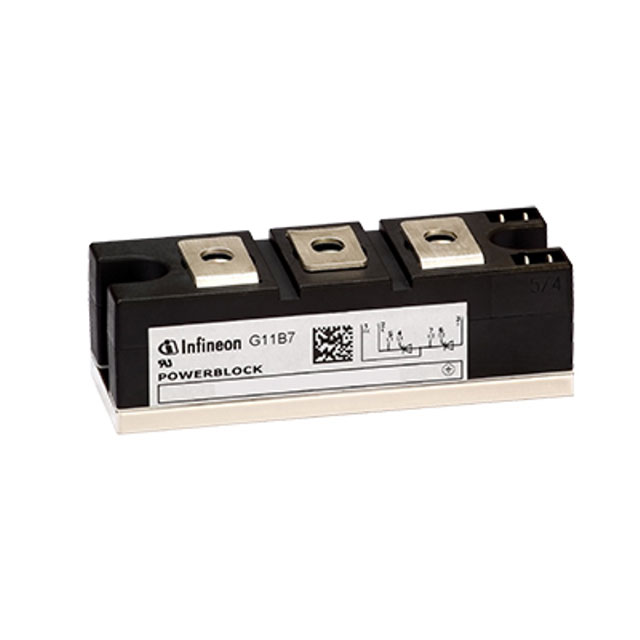

TT162N16KOFHPSA2
DIODEManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 1.6 kV 260 A Series Connection - All SCRs Chassis Mount Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | 125°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 5200A @ 50Hz |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 162 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 260 A |
| Voltage - Off State | 1.6 kV |
Request a Quote
