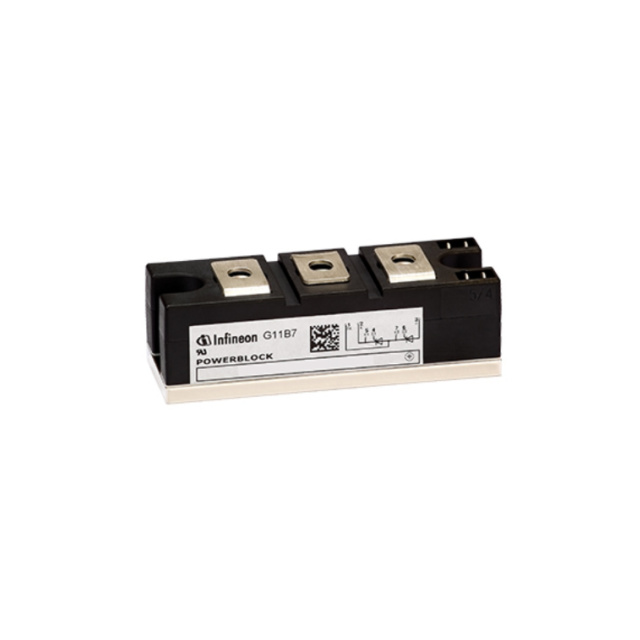

TT142N16KOFHPSA1
SCR MODULE 1.6KV 230A MODULEManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
Infineon Technologies TT142N16KOFHPSA1 is a high-performance SCR module designed for demanding power control applications. This module features a series connection of two SCRs, offering robust current handling capabilities with a maximum on-state current of 142 A (IT(AV)). The device boasts a significant off-state voltage rating of 1.6 kV and a high surge current capability of 4800 A at 50 Hz (ITSM).
With a chassis mount design, the TT142N16KOFHPSA1 facilitates efficient thermal management. Key triggering parameters include a gate trigger current (IGT) of 150 mA and a gate trigger voltage (VGT) of 2 V. The module maintains a hold current (IH) of 200 mA, ensuring reliable operation. Operating across a temperature range of -40°C to 125°C, this Infineon Technologies SCR module is suitable for use in industrial power supplies, motor drives, and grid-tied power conversion systems. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 4800A @ 50Hz |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 142 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Voltage - Off State | 1.6 kV |
