TT120N16SOFHPSA1
SCR MODULE 1.6V 190A MODULEManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More

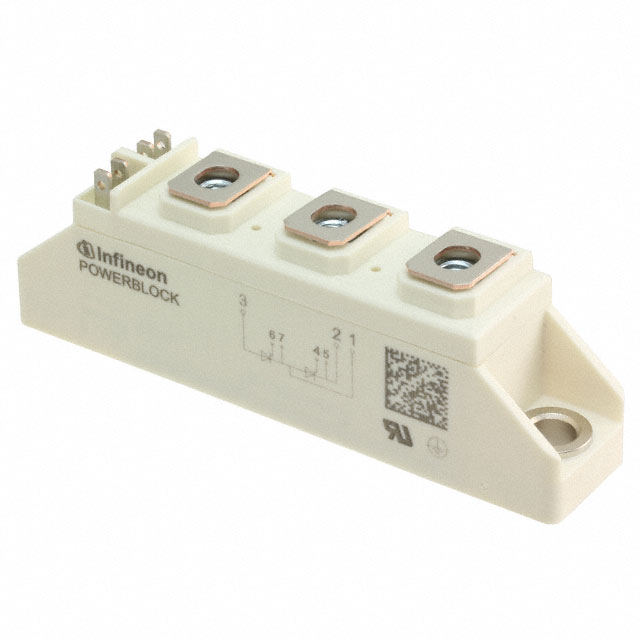

Infineon Technologies TT120N16SOFHPSA1 is a series-connected SCR module designed for high-power applications. This chassis-mount module features two SCRs, providing a robust solution for demanding electrical systems. With a maximum on-state RMS current of 190 A and an average on-state current of 119 A, it is suitable for power control in industrial motor drives, power supplies, and welding equipment. The module boasts a high off-state voltage of 1.6 kV. Gate trigger characteristics include a maximum trigger current (Igt) of 100 mA and a maximum trigger voltage (Vgt) of 2.5 V. Its operating temperature range of -40°C to 130°C ensures reliability in challenging environments. The series connection of all SCRs within the module simplifies system integration.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 130°C |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 250 mA |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 119 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 190 A |
| Voltage - Off State | 1.6 kV |
