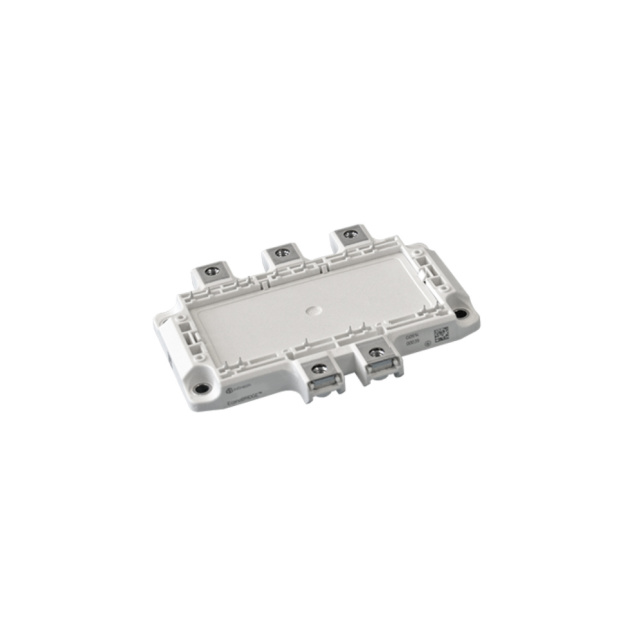

TDB6HK360N16PBOSA1
THYRISTOR MODULE VDRM 1600V 70AManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 1.6 kV 360 A Bridge, 3-Phase - SCRs/Diodes Chassis Mount Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 130°C (TJ) |
| Structure | Bridge, 3-Phase - SCRs/Diodes |
| Current - Hold (Ih) (Max) | 220 mA |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 3000A @ 50Hz |
| Number of SCRs, Diodes | 3 SCRs, 3 Diodes |
| Current - On State (It (AV)) (Max) | 210 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 360 A |
| Voltage - Off State | 1.6 kV |
