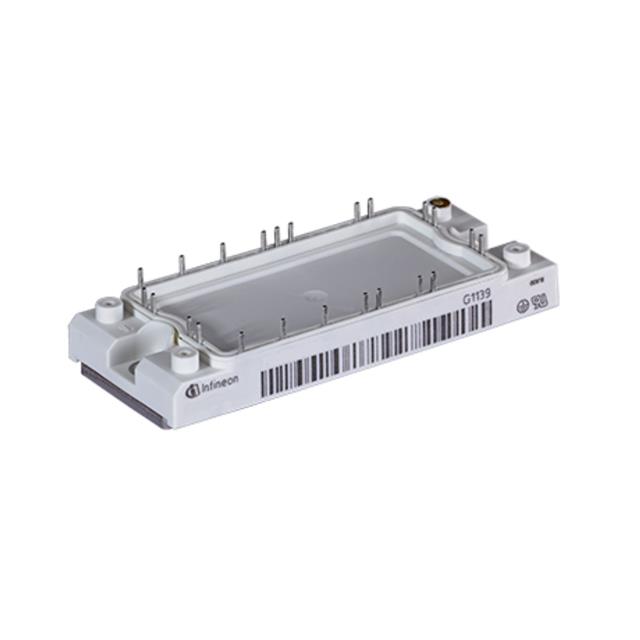

TDB6HK124N16RRBPSA1
LOW POWER ECONO AG-ECONO2B-211Manufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 1.6 kV 70 A Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode Chassis Mount Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | 125°C (TJ) |
| Structure | Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 650A @ 50Hz |
| Number of SCRs, Diodes | 3 SCRs, 3 Diodes |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 70 A |
| Voltage - Off State | 1.6 kV |
Request a Quote
