TD780N18KOFXPSA1
THYR / DIODE MODULE DKManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More

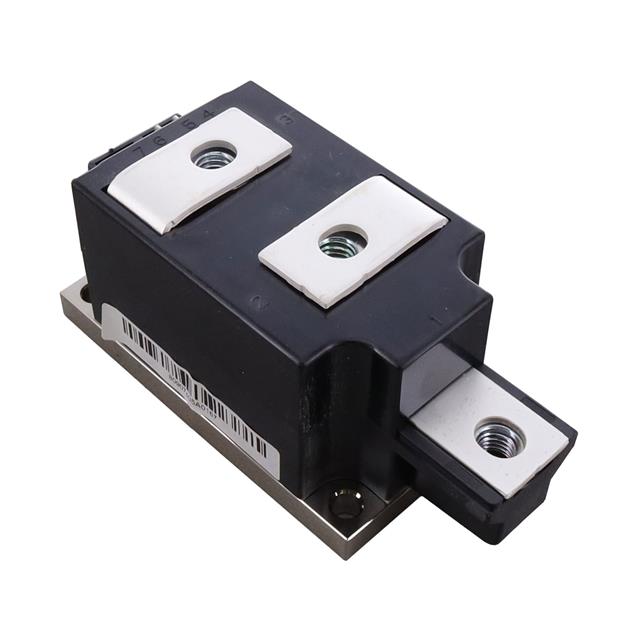

Infineon Technologies TD780N18KOFXPSA1 is a SCR/Diode Module from the TD Series, designed for high-power applications. This module features a series connection of one SCR and one diode, housed in a chassis mount package. It offers a high repetitive peak off-state voltage of 1.8 kV and a substantial on-state current handling capability of 775 A (average) and 1050 A (RMS). The module is engineered for demanding industrial environments, supporting a peak surge current of 23500 A at 50Hz. Key parameters include a gate trigger current (Igt) of 250 mA and a holding current (Ih) of 300 mA, with a gate trigger voltage (Vgt) of 2 V. The maximum junction temperature is rated at 135°C. This component is typically utilized in power control systems, motor drives, and industrial power supplies.
Additional Information
Series: TDRoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | 135°C (TJ) |
| Structure | Series Connection - SCR/Diode |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 23500A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Current - On State (It (AV)) (Max) | 775 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 1050 A |
| Voltage - Off State | 1.8 kV |
