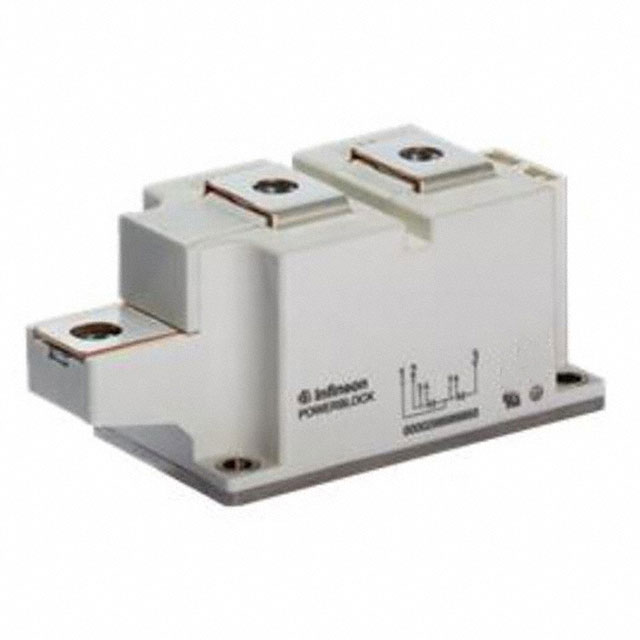

TD280N18SOFHPSA1
SCR MODULE 1800V 520A MODULEManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 1.8 kV 520 A Series Connection - SCR/Diode Chassis Mount Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 130°C |
| Structure | Series Connection - SCR/Diode |
| Current - Hold (Ih) (Max) | 150 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 9000A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Current - On State (It (AV)) (Max) | 280 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 520 A |
| Voltage - Off State | 1.8 kV |
