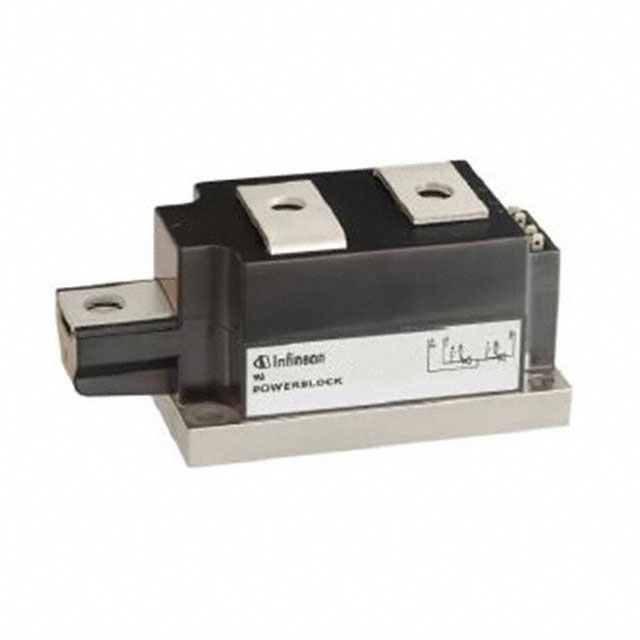

TD270N16KOFBPSA1
SCR MODULE 1600V 450A MODULEManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
Infineon Technologies TD270N16KOFBPSA1 is a high-power SCR module designed for robust industrial applications. This component features a series connection of an SCR and a diode, suitable for demanding power control and conversion tasks. It offers a repetitive peak off-state voltage of 1.6 kV and a continuous on-state current (RMS) of 450 A, with an average on-state current of 270 A. The module exhibits a surge current capability of 10500 A at 50 Hz. Gate trigger current (Igt) is specified at a maximum of 200 mA, with a gate trigger voltage (Vgt) maximum of 2 V. Hold current (Ih) is a maximum of 300 mA. Operating within a temperature range of -40°C to 125°C, this chassis mount module is commonly utilized in power electronics, motor control, and industrial power supplies. The packaging is provided in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C |
| Structure | Series Connection - SCR/Diode |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 10500A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Current - On State (It (AV)) (Max) | 270 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 450 A |
| Voltage - Off State | 1.6 kV |
