TD180N16KOFHPSA1

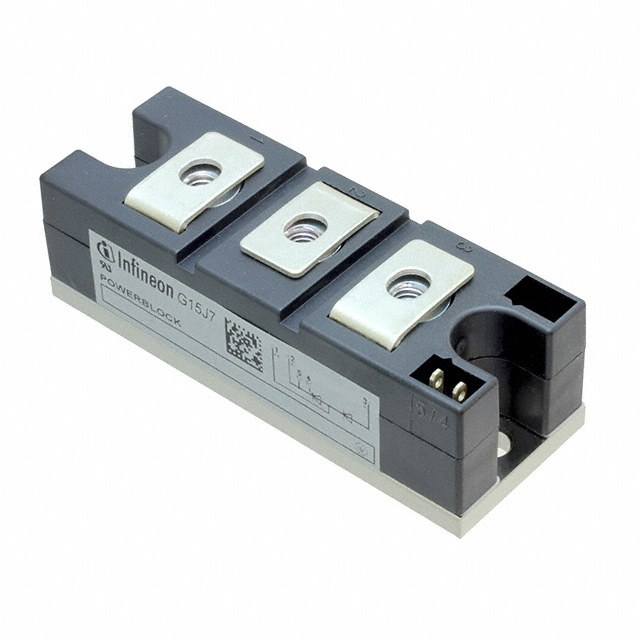

THYRISTOR MODULE 1600V 180AManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
Infineon Technologies TD180N16KOFHPSA1 is a high-power thyristor module designed for demanding power control applications. This module features a series connection of an SCR and a diode, offering a robust solution for rectification and switching. With a maximum repetitive peak off-state voltage of 1.6 kV and a continuous on-state current rating of 180 A (average) and 285 A (RMS), it is well-suited for industrial motor control, power supplies, and welding equipment. The module requires a gate trigger current of 150 mA and a gate trigger voltage of 2 V for activation, with a holding current of 200 mA. It is designed for chassis mounting, facilitating efficient heat dissipation in high-power systems. The operating temperature range extends to 130°C (TJ). This component is delivered in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | 130°C (TJ) |
| Structure | Series Connection - SCR/Diode |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Current - On State (It (AV)) (Max) | 180 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 285 A |
| Voltage - Off State | 1.6 kV |
