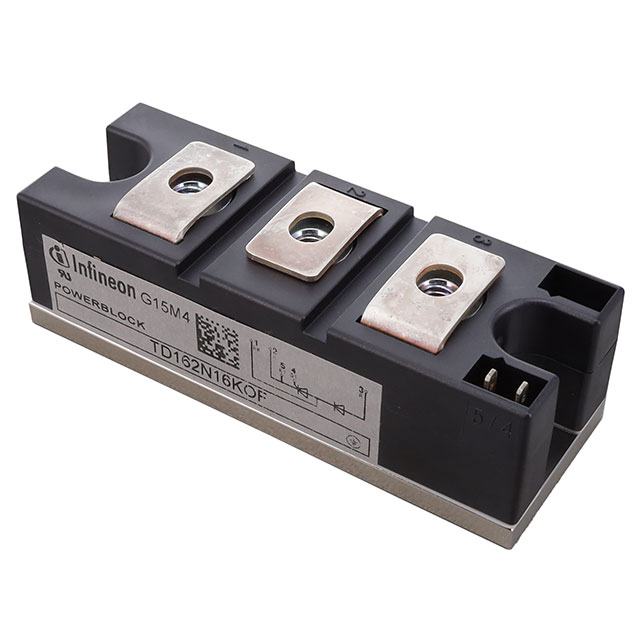

TD162N16KOFHPSA1
SCR MODULE 1600V 260A MODULEManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
Infineon Technologies TD162N16KOFHPSA1 SCR Module offers a robust solution for high-power switching applications. This module features a 1.6 kV blocking voltage and a significant on-state current capability of 260 A RMS (162 A average). Designed with a series connection of an SCR and a diode, it provides efficient power control. The module boasts a high surge current rating of 5200 A at 50 Hz. With a gate trigger current of 150 mA and a gate trigger voltage of 2 V, precise control is achievable. The chassis mount package ensures effective thermal management, operating across a temperature range of -40°C to 125°C. This component is commonly utilized in industrial power supplies, motor drives, and power grid applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C |
| Structure | Series Connection - SCR/Diode |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 5200A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Current - On State (It (AV)) (Max) | 162 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 260 A |
| Voltage - Off State | 1.6 kV |
