TD120N16SOFHPSA1

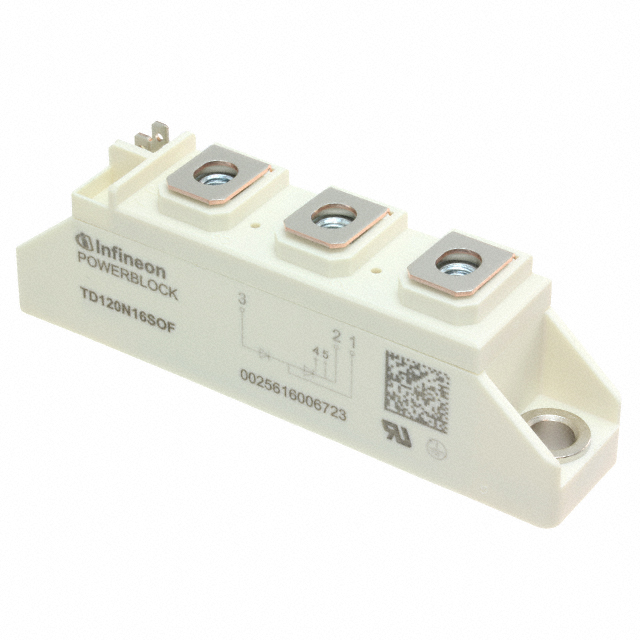

THYRISTOR MODULE 1600V 120AManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
Infineon Technologies TD120N16SOFHPSA1 is a high-power thyristor module designed for demanding industrial applications. This module features a series connection of one SCR and one diode, rated for 1.6 kV off-state voltage. The on-state current capability is 119 A (average) and 190 A (RMS). Key trigger parameters include a gate trigger current (Igt) of 100 mA and a gate trigger voltage (Vgt) of 2.5 V. The hold current (Ih) is specified at 250 mA. Operating at a maximum junction temperature of 130°C, this chassis mount module is suitable for power control in electric vehicle charging, industrial motor drives, and renewable energy systems. Packaged in a Tray, the TD120N16SOFHPSA1 offers robust performance for high-voltage switching and control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | 130°C (TJ) |
| Structure | Series Connection - SCR/Diode |
| Current - Hold (Ih) (Max) | 250 mA |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Current - On State (It (AV)) (Max) | 119 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 190 A |
| Voltage - Off State | 1.6 kV |
