T901N36TOFXPSA1
SCR MODULE 3600V 29900A DO200AEManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More

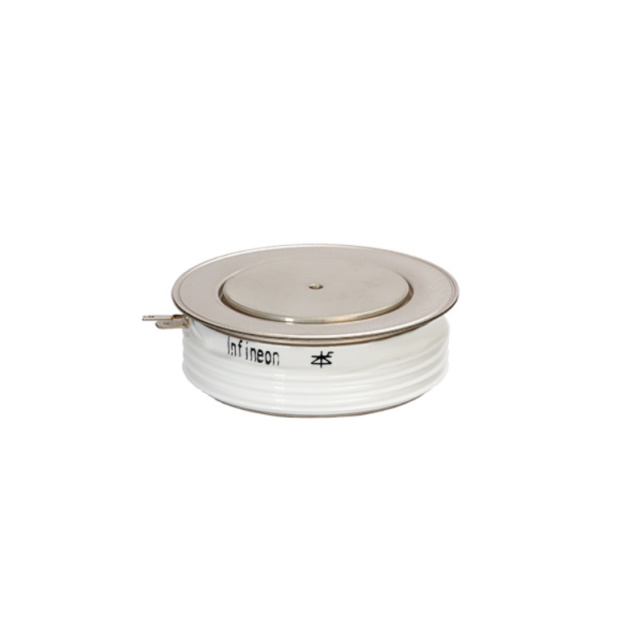

Infineon Technologies SCR Module T901N36TOFXPSA1 is a high-power silicon-controlled rectifier designed for demanding applications. This single SCR, housed in a TO-200AC package with a clamp-on mounting type, offers a substantial off-state voltage rating of 3.6 kV and an impressive on-state RMS current capability of 29900 A. Its surge current handling is rated at 44000 A at 50 Hz. The module features a gate trigger current (Igt) and hold current (Ih) of 350 mA, with a maximum gate trigger voltage (Vgt) of 2.5 V. Operating within a temperature range of -40°C to 125°C, this component is suitable for power control and conversion systems in industries such as industrial motor control, power distribution, and renewable energy. The T901N36TOFXPSA1 is supplied in a tray.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-200AC |
| Mounting Type | Clamp On |
| Operating Temperature | -40°C ~ 125°C |
| Structure | Single |
| Current - Hold (Ih) (Max) | 350 mA |
| Current - Gate Trigger (Igt) (Max) | 350 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 44000A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 1900 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 29900 A |
| Voltage - Off State | 3.6 kV |
