T640N16TOFXPSA1
SCR MODULE 1800V 1250A DO200AAManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More

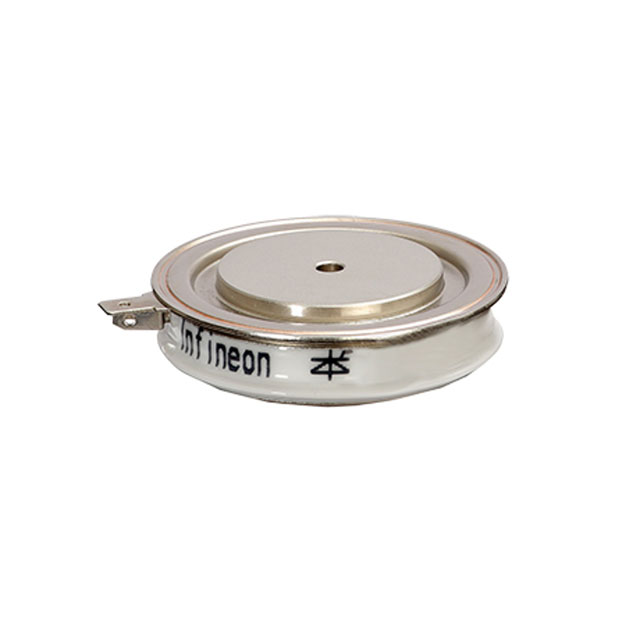

SCR Module 1.8 kV 1250 A Single Clamp On DO-200AA, A-PUK
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | DO-200AA, A-PUK |
| Mounting Type | Clamp On |
| Operating Temperature | -40°C ~ 125°C |
| Structure | Single |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 9400A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 644 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.2 V |
| Current - On State (It (RMS)) (Max) | 1250 A |
| Voltage - Off State | 1.8 kV |
