T590N16TOFXPSA1

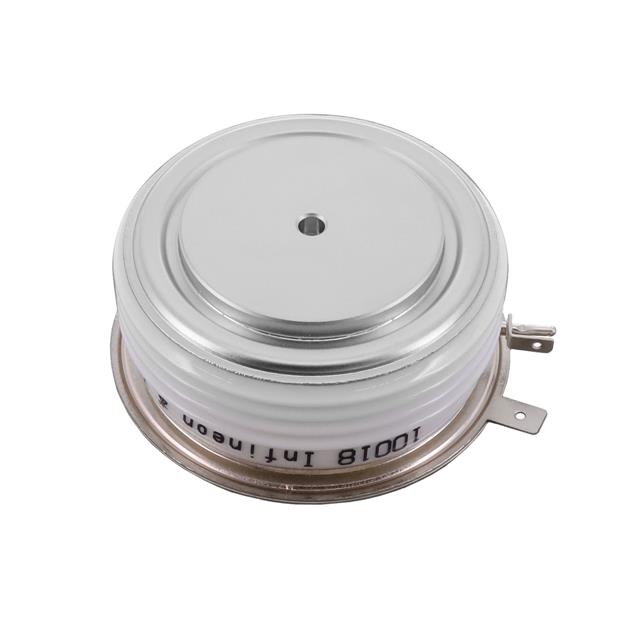

SCR MODULE 1800V 1250A DO200ABManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
Infineon Technologies T590N16TOFXPSA1 is a single SCR module with a 1.8 kV off-state voltage and a maximum RMS on-state current of 1250 A. This component features a maximum average on-state current of 590 A and a non-repetitive surge current rating of 9400 A at 50 Hz. The gate trigger specifications include a maximum gate trigger current (Igt) of 250 mA and a maximum gate trigger voltage (Vgt) of 2.2 V, with a maximum holding current (Ih) of 300 mA. Designed for robust performance, it operates within a temperature range of -40°C to 125°C. The module is housed in a DO-200AB, B-PUK package and utilizes a clamp-on mounting type. This device is commonly employed in high-power industrial applications such as motor control, power supplies, and solid-state switching systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | DO-200AB, B-PUK |
| Mounting Type | Clamp On |
| Operating Temperature | -40°C ~ 125°C |
| Structure | Single |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 9400A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 590 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.2 V |
| Current - On State (It (RMS)) (Max) | 1250 A |
| Voltage - Off State | 1.8 kV |
