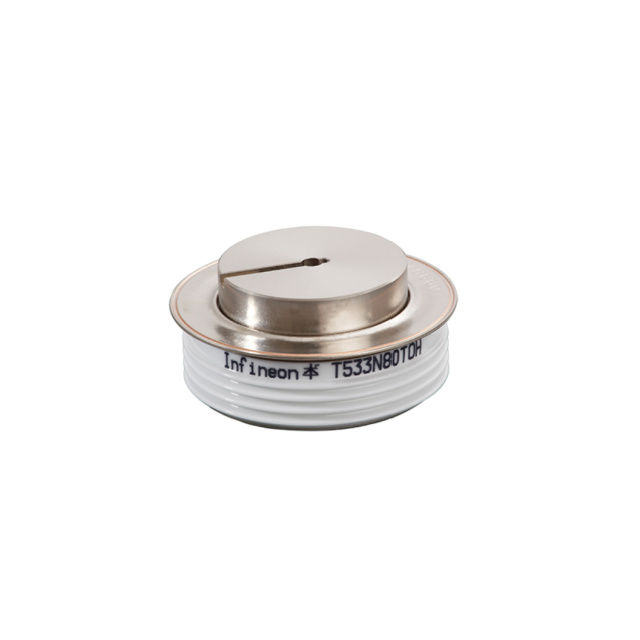

T533N80TOHXPSA1
SCR MODULE 864A DO200AC K-PUKManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
Infineon Technologies T533N80TOHXPSA1 is a single-element SCR module featuring a TO-200AC package with a clamp-on mounting type. This component is rated for a maximum on-state current of 864 A (RMS) and 790 A (average). Its surge capability is significant, with a non-repetitive surge current of 10500 A at 50 Hz. The holding current (I_H) is specified at a maximum of 100 mA. Operating within a temperature range of -40°C to 120°C, this module is suitable for high-power applications. It finds use in industries such as industrial motor control, power grid systems, and welding equipment. The component is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 44 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-200AC |
| Mounting Type | Clamp On |
| Operating Temperature | -40°C ~ 120°C |
| Structure | Single |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 10500A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 790 A |
| Current - On State (It (RMS)) (Max) | 864 A |
