T4021N52TOHXPSA1
SCR MODULE 5350V 6100A DO200AEManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More

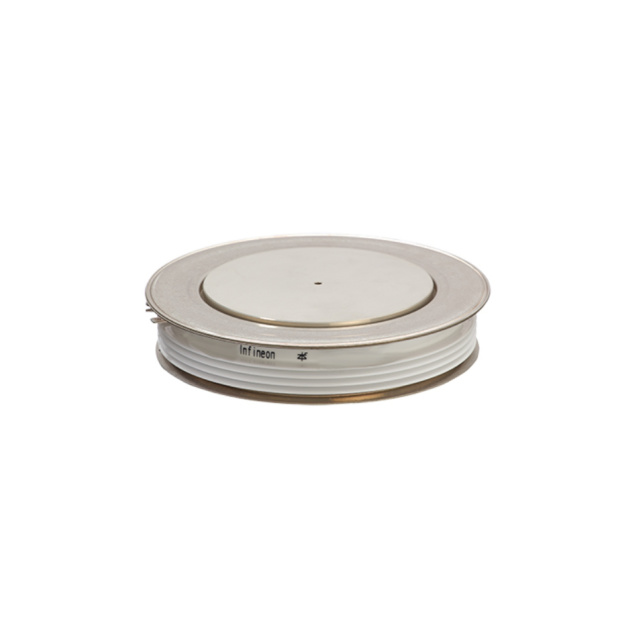

Infineon Technologies T4021N52TOHXPSA1 SCR Module, featuring a single SCR structure within a TO-200AF chassis mount package. This component offers a robust 5.35 kV blocking voltage and handles a substantial 6100 A RMS on-state current. The T4021N52TOHXPSA1 is designed for applications requiring high power switching, with a significant 105,000 A surge capability at 50Hz. Key parameters include a 3.5 V gate trigger voltage and 350 mA gate trigger current, with a holding current also rated at 350 mA. Operating across a temperature range of -40°C to 125°C, this module is commonly utilized in demanding industrial applications such as high-power motor control, power transmission, and industrial heating systems. The component is supplied in Tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-200AF |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C |
| Structure | Single |
| Current - Hold (Ih) (Max) | 350 mA |
| Current - Gate Trigger (Igt) (Max) | 350 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 105000A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 5460 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3.5 V |
| Current - On State (It (RMS)) (Max) | 6100 A |
| Voltage - Off State | 5.35 kV |
