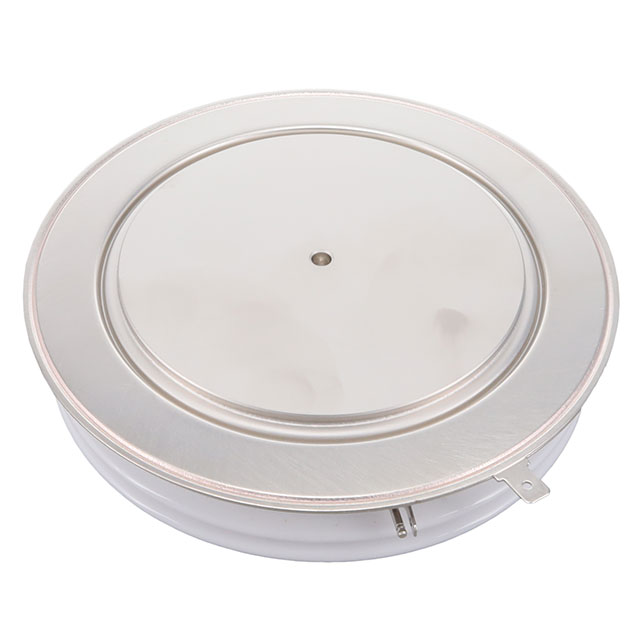

T3800N16TOFVTXPSA1
STD THYR/DIODEN DISC BG-T11126K-Manufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
Infineon Technologies T3800N16TOFVTXPSA1 is a single SCR module with a voltage rating of 1.8 kV and an RMS on-state current capability of 5970 A. This component features a chassis mount package, TO-200AE (also known as BG-T11126K-), facilitating robust thermal management. It has a specified on-state current (average) of 3800 A and a significant non-repetitive surge current rating of 63000 A at 50Hz. The gate trigger characteristics include a maximum voltage of 2.5 V and a maximum current of 250 mA, with a hold current of 300 mA. Operating at a junction temperature up to 135°C, this module is suitable for high-power applications in industries such as industrial motor control, renewable energy conversion, and power grid systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-200AE |
| Mounting Type | Chassis Mount |
| Operating Temperature | 135°C (TJ) |
| Structure | Single |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 63000A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 3800 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 5970 A |
| Voltage - Off State | 1.8 kV |
