T280N65TOFXPSA1
SCR MODULE 6500V 440A DO200ABManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More

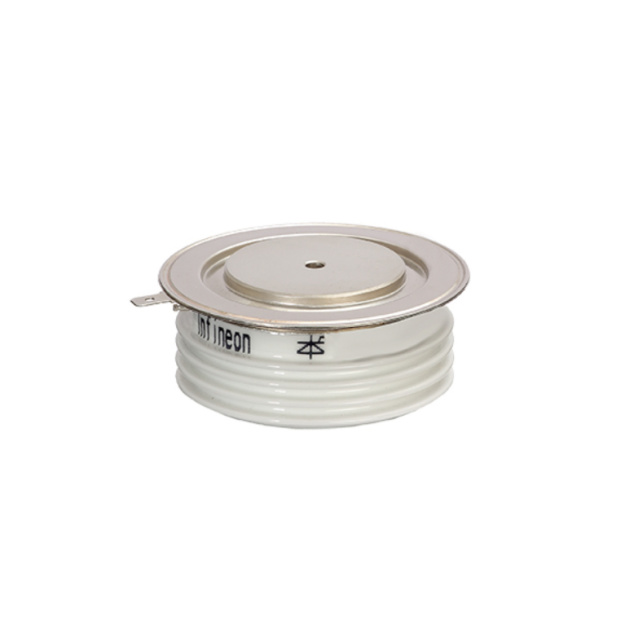

Infineon Technologies T280N65TOFXPSA1 is a single SCR module featuring a 6.5 kV repetitive peak off-state voltage. This component is packaged in a TO-200AB case with a clamp-on mounting type. It offers a rated average on-state current of 620 A and an RMS on-state current of 440 A. The non-repetitive surge current (50Hz) is 5800 A. Gate trigger characteristics include a maximum voltage of 2.5 V and a maximum current of 350 mA. The holding current is also specified at a maximum of 350 mA. Operating temperature ranges from -40°C to 125°C. This module is utilized in high-power applications across industries such as industrial motor control, power grid systems, and renewable energy conversion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-200AB |
| Mounting Type | Clamp On |
| Operating Temperature | -40°C ~ 125°C |
| Structure | Single |
| Current - Hold (Ih) (Max) | 350 mA |
| Current - Gate Trigger (Igt) (Max) | 350 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 5800A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 620 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 440 A |
| Voltage - Off State | 6.5 kV |
Request a Quote
