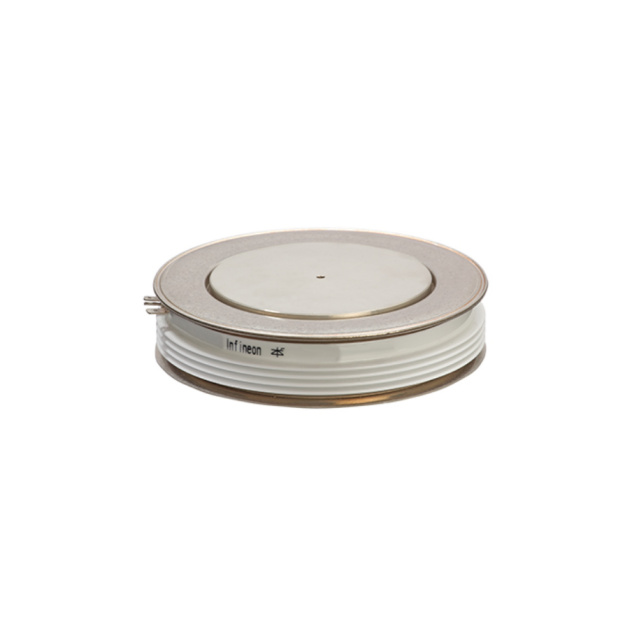

T1901N80TOHXPSA1
SCR MODULE 8000V 3300A DO200AEManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
Infineon Technologies T1901N80TOHXPSA1 is a single SCR module with an 8 kV blocking voltage and a 3300 A RMS on-state current. This module features a robust TO-200AF package designed for chassis mounting, ensuring efficient thermal management. The T1901N80TOHXPSA1 exhibits a maximum gate trigger current (Igt) and hold current (Ih) of 350 mA, with a gate trigger voltage (Vgt) of 2.5 V. Its non-repetitive surge current handling capability reaches 67000 A at 50 Hz. Operating across a temperature range of -40°C to 125°C, this component is suitable for high-power applications within the industrial and renewable energy sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-200AF |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C |
| Structure | Single |
| Current - Hold (Ih) (Max) | 350 mA |
| Current - Gate Trigger (Igt) (Max) | 350 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 67000A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 2930 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 3300 A |
| Voltage - Off State | 8 kV |
