T1900N18TOFVTXPSA1
STD THYR/DIODEN DISC BG-T7526K-1Manufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More

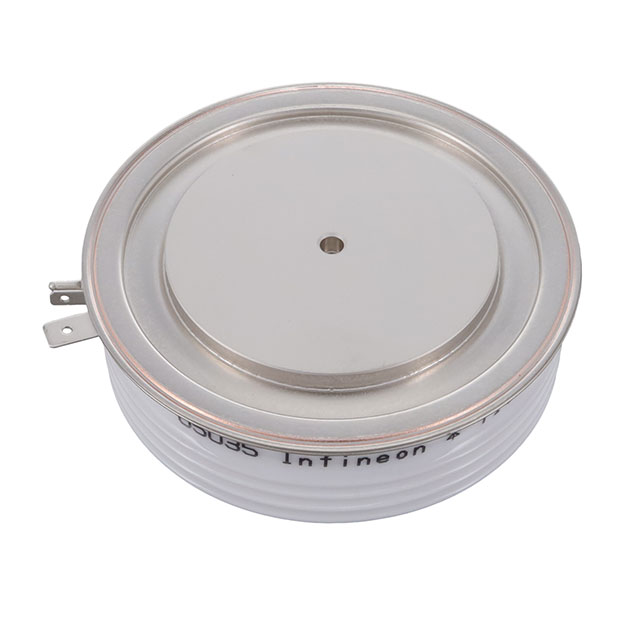

Infineon Technologies T1900N18TOFVTXPSA1 is a single SCR module with a maximum repetitive off-state voltage of 1.8 kV. This component features a robust TO-200AC package, designed for clamp-on mounting. It offers a high continuous on-state current of 1810 A (average) and 2840 A (RMS), with a significant non-repetitive surge current capability of 39000 A at 50 Hz. The gate trigger current (Igt) is rated at a maximum of 250 mA, with a maximum gate trigger voltage (Vgt) of 2 V. The hold current (Ih) is a maximum of 500 mA, and the operational junction temperature can reach up to 135°C. This module is commonly utilized in industrial applications requiring high power switching and control, such as motor drives, power supplies, and electric vehicle charging systems. Supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-200AC |
| Mounting Type | Clamp On |
| Operating Temperature | 135°C (TJ) |
| Structure | Single |
| Current - Hold (Ih) (Max) | 500 mA |
| Current - Gate Trigger (Igt) (Max) | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 39000A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 1810 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 2840 A |
| Voltage - Off State | 1.8 kV |
