T1500N16TOFVTXPSA1
SCR MODULE 1800V 3500A DO200ACManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More

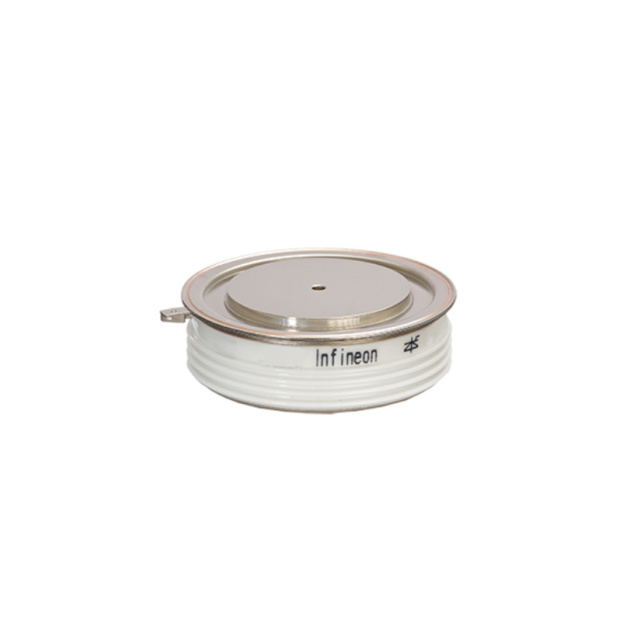

Infineon Technologies T1500N16TOFVTXPSA1 is a single SCR module with a 1.8 kV blocking voltage and a 3500 A RMS on-state current rating. This robust component, housed in a DO-200AB, B-PUK package, features a clamp-on mounting type for efficient heat dissipation. The T1500N16TOFVTXPSA1 is designed for high-power applications, typically found in industrial motor control, power grid infrastructure, and electric transportation systems. It exhibits a peak non-repetitive surge current of 39000 A at 50 Hz and requires a gate trigger current of up to 250 mA and a gate trigger voltage of 2 V. The device maintains a hold current of 500 mA and operates across a temperature range of -40°C to 140°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | DO-200AB, B-PUK |
| Mounting Type | Clamp On |
| Operating Temperature | -40°C ~ 140°C |
| Structure | Single |
| Current - Hold (Ih) (Max) | 500 mA |
| Current - Gate Trigger (Igt) (Max) | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 39000A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 1500 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 3500 A |
| Voltage - Off State | 1.8 kV |
