T1190N18TOFVTXPSA1
SCR MODULE 1800V 2800A DO200ACManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More

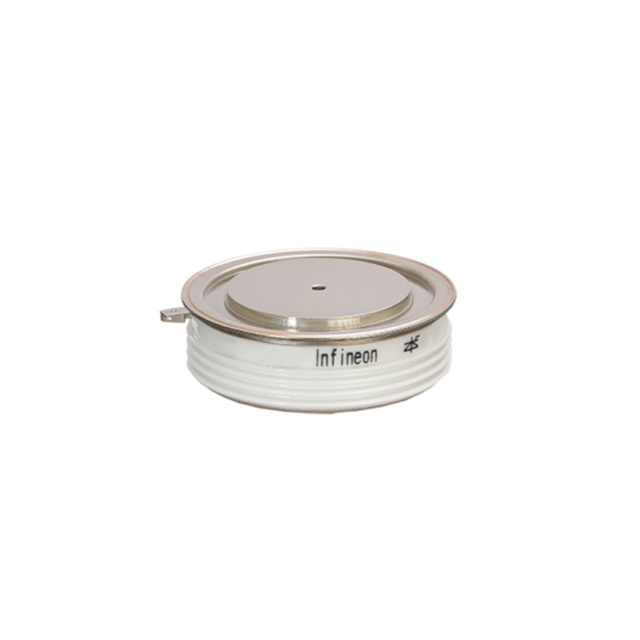

Infineon Technologies T1190N18TOFVTXPSA1 is a high-power SCR module featuring a single SCR in a TO-200AC package. This component is designed for demanding applications requiring robust power control, with a blocking voltage of 1.8 kV and a continuous on-state current rating of 1190 A (average) or 2800 A (RMS). It offers a substantial non-repetitive surge current capability of 25500 A at 50 Hz. The module's electrical characteristics include a gate trigger current (Igt) of 250 mA and a hold current (Ih) of 500 mA, with a gate trigger voltage (Vgt) of 2 V. Its clamp-on mounting type ensures secure installation. Operating across a temperature range of -40°C to 125°C, this Infineon Technologies SCR module is suitable for use in industrial motor drives, power supplies, and high-power switching applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-200AC |
| Mounting Type | Clamp On |
| Operating Temperature | -40°C ~ 125°C |
| Structure | Single |
| Current - Hold (Ih) (Max) | 500 mA |
| Current - Gate Trigger (Igt) (Max) | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 25500A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 1190 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 2800 A |
| Voltage - Off State | 1.8 kV |
