T1081N70TOHPRXPSA1
HIGH POWER THYR / DIOManufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More

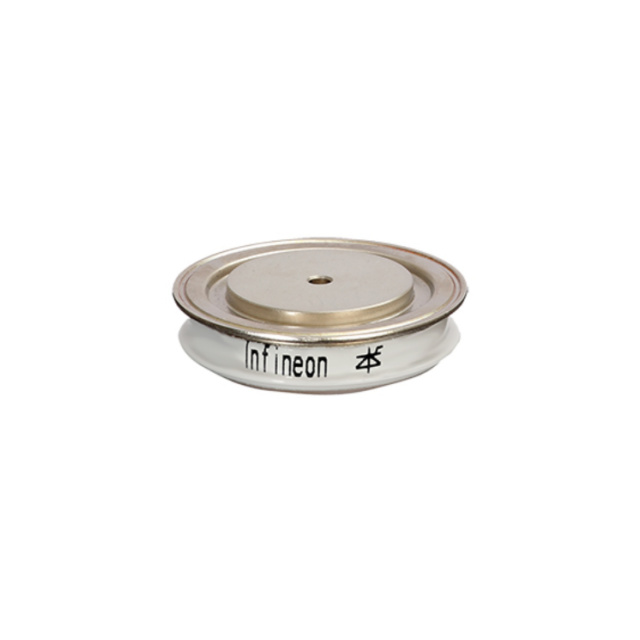

Infineon Technologies T1081N70TOHPRXPSA1 is a single SCR module designed for high-power applications. This component features a 7 kV blocking voltage and a 2040 A RMS on-state current rating. The module has a chassis mount configuration with a TO-200AF package. Key electrical specifications include a 2.5 V maximum gate trigger voltage and a 350 mA maximum gate trigger current. The non-repetitive surge current capability is 35000 A at 50 Hz. With an operating temperature range of -40°C to 125°C (TC), this SCR module is suitable for demanding environments. Industries such as power generation, industrial motor control, and traction systems commonly utilize components with these characteristics. The T1081N70TOHPRXPSA1 is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-200AF |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TC) |
| Structure | Single |
| Current - Hold (Ih) (Max) | 350 mA |
| Current - Gate Trigger (Igt) (Max) | 350 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 35000A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 1800 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 2040 A |
| Voltage - Off State | 7 kV |
