STT800N16P55XPSA1

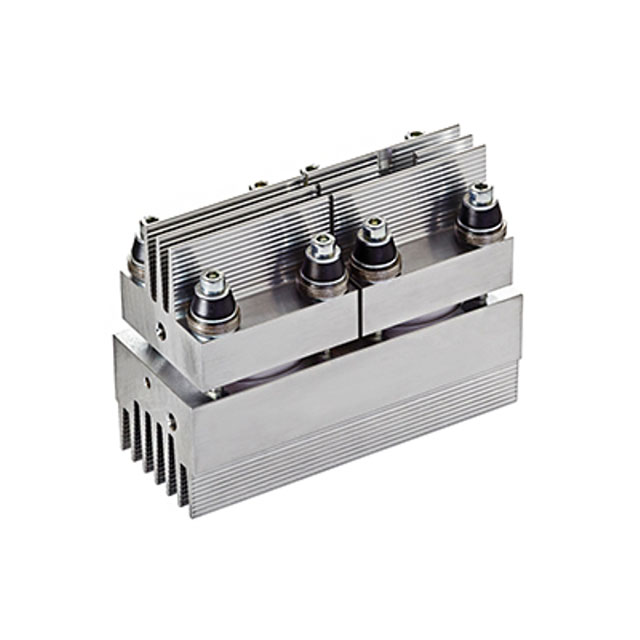

SCR MODULE POWERBLOCK PS55-1Manufacturer: Infineon Technologies
Categories: SCRs - Modules
Quality Control: Learn More
Infineon Technologies STT800N16P55XPSA1 is a SCR module designed for robust power control applications. This 1-phase controller features two SCRs within a chassis mount module, offering a high off-state voltage of 1.6 kV. It is engineered for demanding industrial environments, commonly found in motor drives, power supplies, and welding equipment. The module exhibits a maximum gate trigger current (Igt) of 200 mA and a maximum holding current (Ih) of 300 mA, with a maximum gate trigger voltage (Vgt) of 2 V. Its non-repetitive surge current capability at 50Hz is 6300A, ensuring reliability under transient conditions. The operating temperature range extends to 125°C (TJ), making it suitable for high-power, high-temperature operations. This component is supplied in Tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 98 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | 125°C (TJ) |
| Structure | 1-Phase Controller - All SCRs |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 6300A @ 50Hz |
| Number of SCRs, Diodes | 2 SCRs |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Voltage - Off State | 1.6 kV |
